SAMA7G54-V/4HB - Microchip

SAMA7G54-V/4HB Details

• Manufacturer Part Number:

  SAMA7G54-V/4HB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

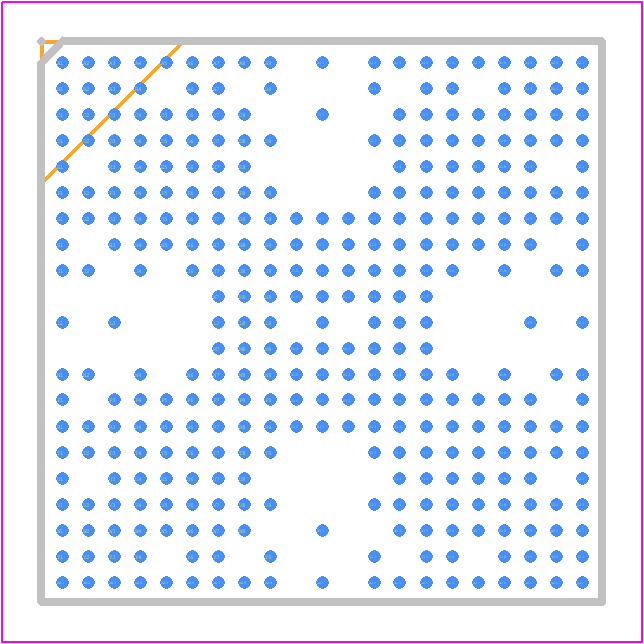

• Package Description:

  TFBGA-343

• Pin Count:

  343

• Manufacturer Package Code:

  TFBGA-343

• Country Of Origin:

  Taiwan

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.30

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  23

• Address Bus Width:

  26

• Boundary Scan:

  YES

• Clock Frequency-Max:

  50 MHz

• External Data Bus Width:

  16

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B343

• JESD-609 Code:

  e1

• Length:

  14 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  72

• Number of External Interrupts:

  2

• Number of Serial I/Os:

  1

• Number of Terminals:

  343

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFBGA

• Package Equivalence Code:

  BGA343,21X21,25

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• RAM (words):

  131072

• Seated Height-Max:

  1.2 mm

• Speed:

  1000 MHz

• Supply Voltage-Max:

  1.21 V

• Supply Voltage-Min:

  1.12 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  BOTTOM

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
