SARA-R410M-02B - u-blox

Description: Size-optimized LTE Cat M1/NB1 and EGPRS modules

Download SARA-R410M-02B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SARA-R410M-02B - u-blox - PCB symbol
click to zoom
PCB Footprints

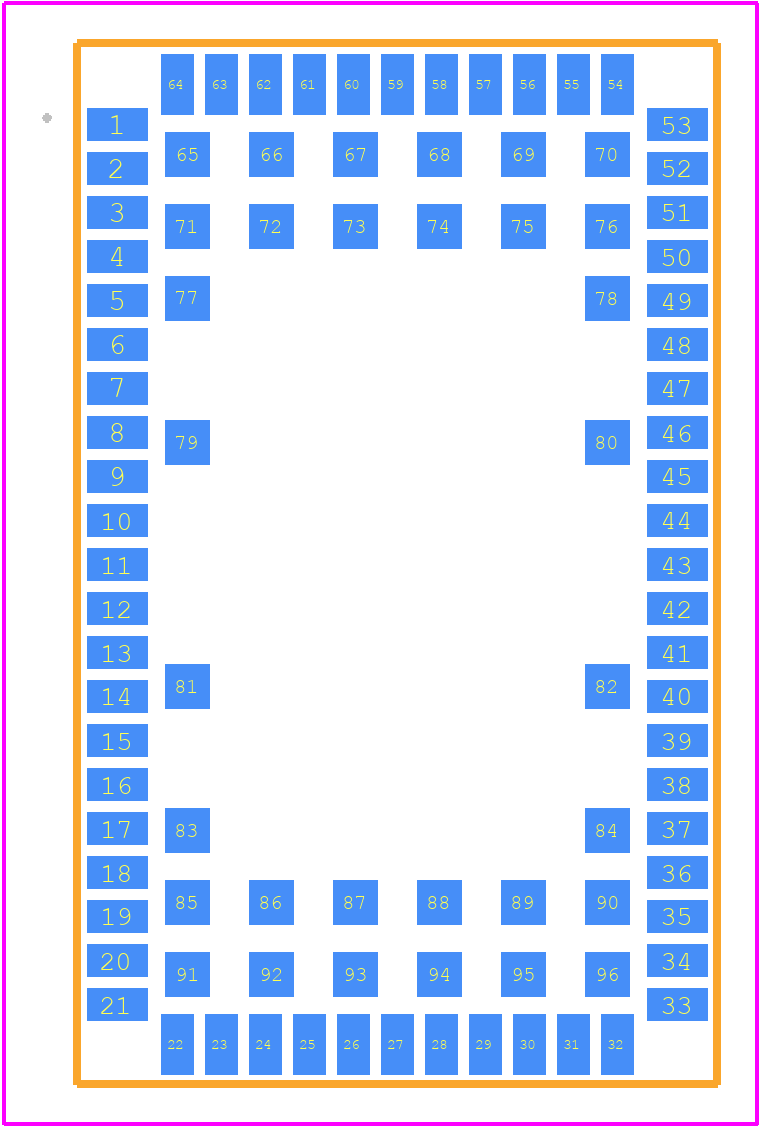

SARA-R410M-02B - u-blox PCB footprint - Other - Other - SARA-U201-03B
click to zoom
3D Models
SARA-R410M-02B - u-blox - 3D model - Other - SARA-U201-03B
click to zoom

SARA-R410M-02B Details

  • Manufacturer Part Number:

    SARA-R410M-02B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • YTEOL:

    8

  • JESD-30 Code:

    R-XBGA-N96

  • Length:

    26 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    96

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.78 mm

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Width:

    16 mm

SARA-R410M-02B Frequently Asked Questions (FAQs)

  • The maximum power consumption of the SARA-R410M-02B module is 350 mA during transmission and 20 mA during reception, according to the datasheet.
  • The SARA-R410M-02B module can be configured for LTE-M or NB-IoT using AT commands. The specific commands and settings depend on the desired mode and network configuration. Refer to the u-blox AT Commands manual for more information.
  • The maximum data transfer rate of the SARA-R410M-02B module is up to 375 kbps for LTE-M and up to 27.2 kbps for NB-IoT, depending on the network and configuration.
  • The SARA-R410M-02B module is certified for use in various regions, including North America, Europe, and Asia. Ensure that the module is certified for use in your region by checking the u-blox website or consulting with a u-blox representative.
  • The operating temperature range of the SARA-R410M-02B module is -40°C to +85°C, making it suitable for use in a wide range of industrial and commercial applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SARA-R410M-02B Overview

Use the download button to access the SARA-R410M-02B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SARA-, or try a keyword search, such as Cellular Telephone Circuits

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
