SARA-R412M-02B-04 - u-blox

Description: Cellular Modules LTE Cat M1, NB1 and 2G module Cat M1/NB1 and 2G; Band configurable LGA, 16x26 mm, 250 pcs/reel

Download SARA-R412M-02B-04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SARA-R412M-02B-04 - u-blox - PCB symbol
click to zoom
PCB Footprints

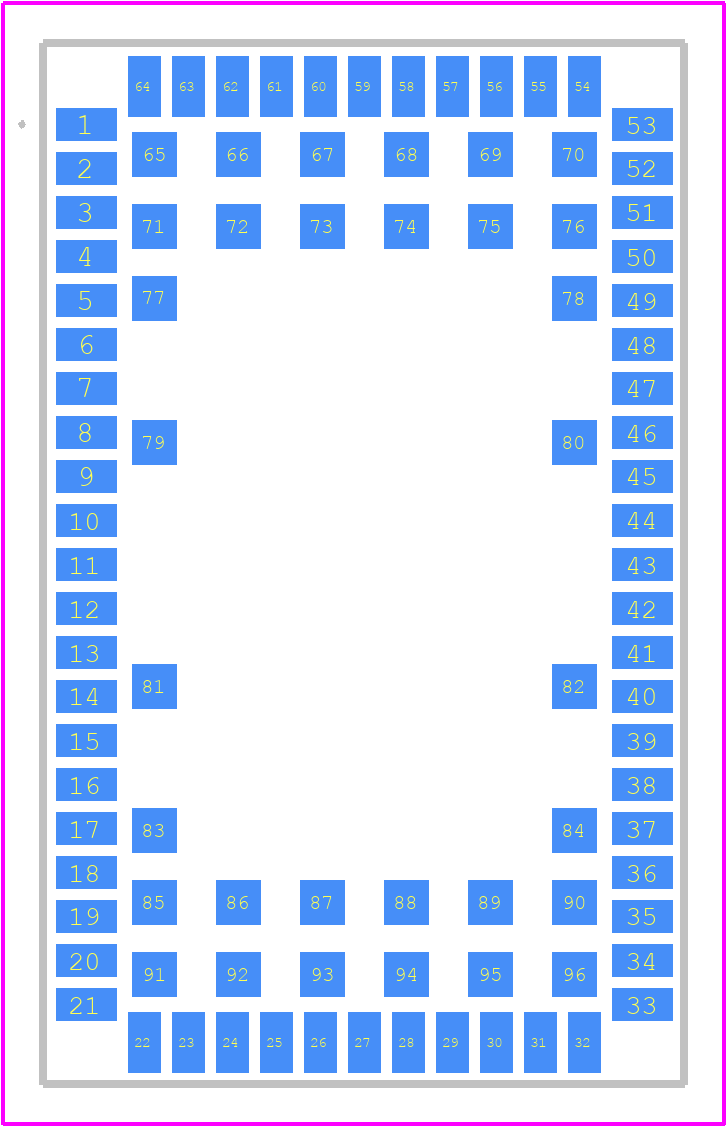

SARA-R412M-02B-04 - u-blox PCB footprint - Other - Other - SARA-R412M-02B-04-2
click to zoom
3D Models
SARA-R412M-02B-04 - u-blox - 3D model - Other - SARA-R412M-02B-04-2
click to zoom

SARA-R412M-02B-04 Details

  • Manufacturer Part Number:

    SARA-R412M-02B-04

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-96

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • Additional Feature:

    -40 to 85 extended operating temp available

  • JESD-30 Code:

    R-XLGA-N96

  • Length:

    26 mm

  • Number of Terminals:

    96

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.78 mm

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    3.2 V

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Width:

    16 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

SARA-R412M-02B-04 Frequently Asked Questions (FAQs)

  • The maximum power consumption of the SARA-R412M-02B-04 module is around 2.5W, but it can vary depending on the operating mode, frequency band, and other factors.
  • You can configure the module for LTE-M or NB-IoT mode using AT commands. For example, to set the module to LTE-M mode, use the command 'AT+UMTS=1' and for NB-IoT mode, use 'AT+UMTS=2'. Refer to the u-blox AT command manual for more information.
  • The maximum data transfer rate of the SARA-R412M-02B-04 module is up to 375 kbps for LTE-M and up to 27.2 kbps for NB-IoT, depending on the network and configuration.
  • No, the SARA-R412M-02B-04 module is designed to work with 3GPP networks only. It does not support non-3GPP networks like LoRaWAN or Sigfox.
  • Firmware updates can be performed using the u-blox u-center software or the u-blox C027 firmware update tool. Refer to the u-blox documentation for step-by-step instructions.
