SARA-R520-02B - u-blox

Description: Cellular Modules LTE-M and NB-IoT global module UBX-R5 Cat M1/NB2 LGA, 16x26 mm, 250 pcs/reel

Download SARA-R520-02B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SARA-R520-02B - u-blox - PCB symbol
click to zoom
PCB Footprints

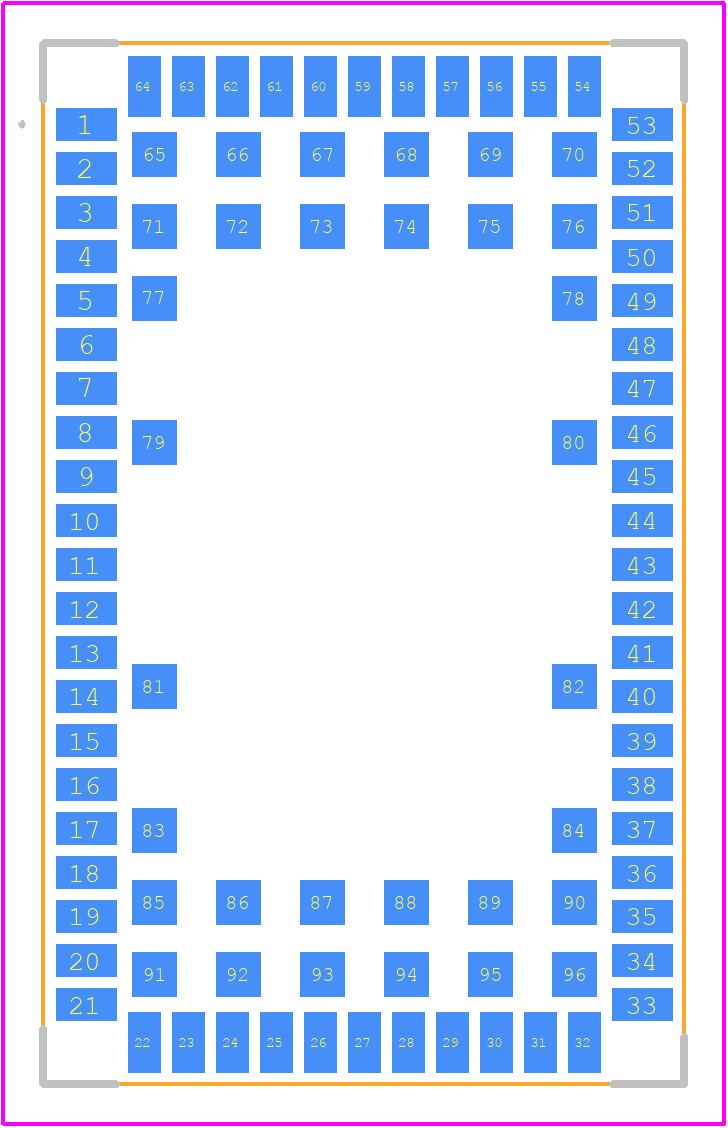

SARA-R520-02B - u-blox PCB footprint - Other - Other - 26mm x 16mm x 2.45mm
click to zoom
3D Models
SARA-R520-02B - u-blox - 3D model - Other - 26mm x 16mm x 2.45mm
click to zoom

SARA-R520-02B Details

  • Manufacturer Part Number:

    SARA-R520-02B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • Moisture Sensitivity Level:

    4

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

SARA-R520-02B Frequently Asked Questions (FAQs)

  • The maximum power consumption of the SARA-R520-02B module is around 2.5W, but it can be optimized to as low as 1.5W depending on the operating mode and configuration.
  • To configure the SARA-R520-02B module for low power consumption, you can use the AT command set to adjust the power mode, disable unnecessary features, and optimize the transmission power. Refer to the AT command documentation for more information.
  • The maximum data transfer rate of the SARA-R520-02B module is up to 10Mbps in LTE-M mode and up to 5Mbps in NB-IoT mode, depending on the network and configuration.
  • No, the SARA-R520-02B module is designed to work with 3GPP networks only. It does not support non-3GPP networks such as LoRaWAN or Sigfox.
  • You can check the firmware version using the AT command set and update it using the u-blox firmware update tool. It is recommended to regularly check for firmware updates to ensure you have the latest features and bug fixes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SARA-R520-02B Overview

Use the download button to access the SARA-R520-02B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SARA-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
