SATA-A-PL-VT-K-1 - Adam Tech

Description: 22 Position SATA Receptacle Connector Solder Through Hole

Download SATA-A-PL-VT-K-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

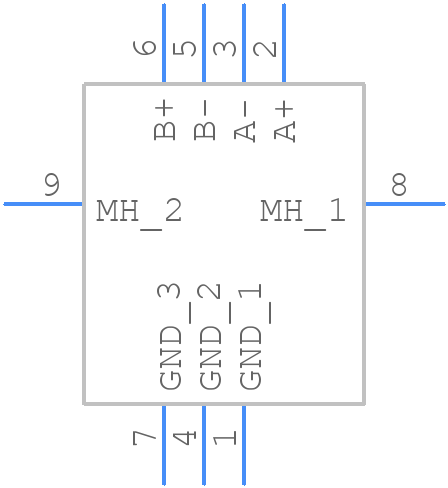

SATA-A-PL-VT-K-1 - Adam Tech - PCB symbol
click to zoom
PCB Footprints
SATA-A-PL-VT-K-1 - Adam Tech PCB footprint - Other - Other - SATA-A-PL-VT-K-1-2
click to zoom

SATA-A-PL-VT-K-1 Details

  • Manufacturer Part Number:

    SATA-A-PL-VT-K-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    2

  • Connector Type:

    SATA CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • JESD-609 Code:

    e3

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SATA-A-PL-VT-K-1 Overview

Use the download button to access the SATA-A-PL-VT-K-1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SATA-, or try a keyword search, such as Telecom and Datacom Connectors
