SAW10S090 - Summit Electronics

Description: SAW10S series are compact size and open frame AC/DC power converters, 10W, Output Volt 9V 85 to 528VAC, 100 to 745VDC, Board Mount SIP, -40°C to +85°C

Download SAW10S090 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SAW10S090 model

Email notifications will be applied after download.

Send part feedback

Symbol

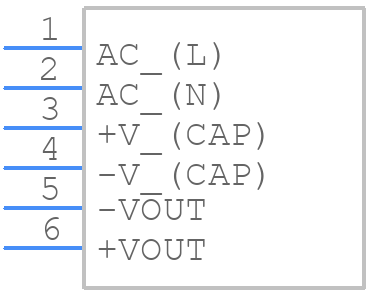

SAW10S090 - Summit Electronics - PCB symbol

PCB Footprints

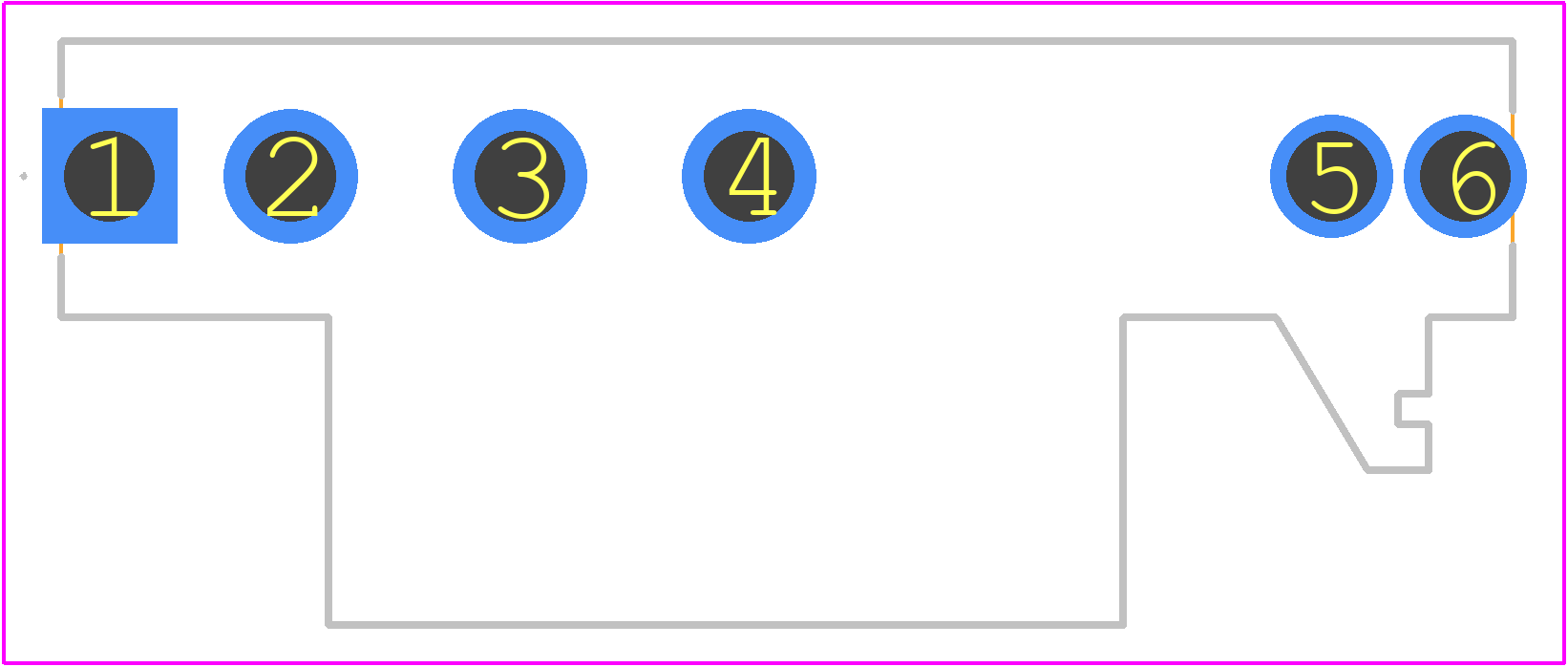

SAW10S090 - Summit Electronics PCB footprint - Other - Other - SIP-6_2026-2.4

3D Models

SAW10S090 - Summit Electronics - 3D model - Other - SIP-6_2026-2.4

Datasheet Download Datasheet
Stock & Prices Price & Stock for SAW10S090
Part Number SAW10S090
Manufacturer Summit Electronics
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - SIP-6_2026-2.4
Released Date May 6, 2026
Last Modified Date May 6, 2026 8:11 AM UTC
Pinout / Pin List Click Here (Member Only)

SAW10S090 Details

Manufacturer Part Number:
SAW10S090
Manufacturer:
(Of No Interest)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SAW10S090 Overview

Use the download button to access the SAW10S090 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SAW10, or try a keyword search, such as SAW Filters
