Delta Electronics provides a recommended PCB layout and thermal management guide in their application notes. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal dissipation. The guide includes recommendations for copper thickness, thermal vias, and component placement.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Delta Electronics recommends using capacitors with a low ESR and high ripple current rating. A minimum of 10uF input capacitance and 22uF output capacitance is recommended. Consult the datasheet and application notes for more information.
The SB01S0505A has a wide input voltage range of 36-72V. However, it's recommended to maintain the input voltage within ±10% of the nominal voltage to ensure stable operation and prevent damage to the module. Exceeding this deviation may affect the module's performance, efficiency, and reliability.
The SB01S0505A has a maximum operating temperature range of -40°C to +85°C. While it can operate in high-temperature environments, it's essential to ensure proper thermal management and derate the module's power output accordingly. Consult the datasheet and application notes for more information on thermal derating and management.
The SB01S0505A has built-in overcurrent protection (OCP) and short-circuit protection (SCP). However, it's recommended to implement additional external protection mechanisms, such as fuses or circuit breakers, to ensure the module and surrounding components are protected from damage. Consult the datasheet and application notes for more information on implementing OCP and SCP.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SB01S0505A Overview

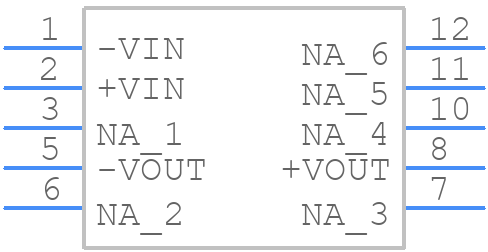

Use the download button to access the SB01S0505A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SB01S,
or try a keyword search, such as Power Supply Modules
