SBB-2-13+ - Mini-Circuits

Description: 2 Ways LTCC Power Splitter, 950 - 1300 MHz, 50Ω

Download SBB-2-13+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

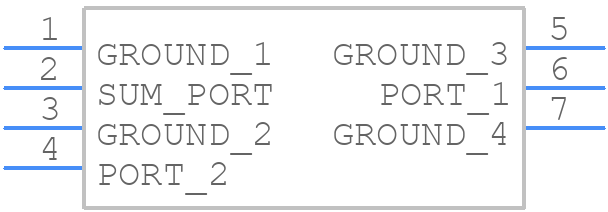

SBB-2-13+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SBB-2-13+ - Mini-Circuits PCB footprint - Other - Other - SBB-2-13+-3
click to zoom
3D Models
SBB-2-13+ - Mini-Circuits - 3D model - Other - SBB-2-13+-3
click to zoom

SBB-2-13+ Details

  • Manufacturer Part Number:

    SBB-2-13+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.95

  • Additional Feature:

    ISOLATION-MIN (DB):15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    40 dBm

  • Insertion Loss-Max:

    1.3 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1300 MHz

  • Operating Frequency-Min:

    950 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.31
