The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the SBH11-PBPC-D12-ST-BK is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
The SBH11-PBPC-D12-ST-BK has a black thermoplastic housing that provides some level of environmental protection, but it's not designed for extreme outdoor or harsh environmental applications. If you need a connector for such applications, consider using a connector with a higher IP rating or additional environmental protection features.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to ensure the wire size and insulation diameter are compatible with the connector's terminal design to prevent damage or poor connections. Consult with Sullins Connector Solutions or a qualified engineer for guidance on using alternative wire sizes.
Yes, to ensure reliable connections and prevent damage to the connector or PCB, follow the recommended PCB layout guidelines provided in the datasheet or by Sullins Connector Solutions. Pay attention to the connector's footprint, pin spacing, and keep-out areas to ensure proper clearance and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SBH11-PBPC-D12-ST-BK Overview

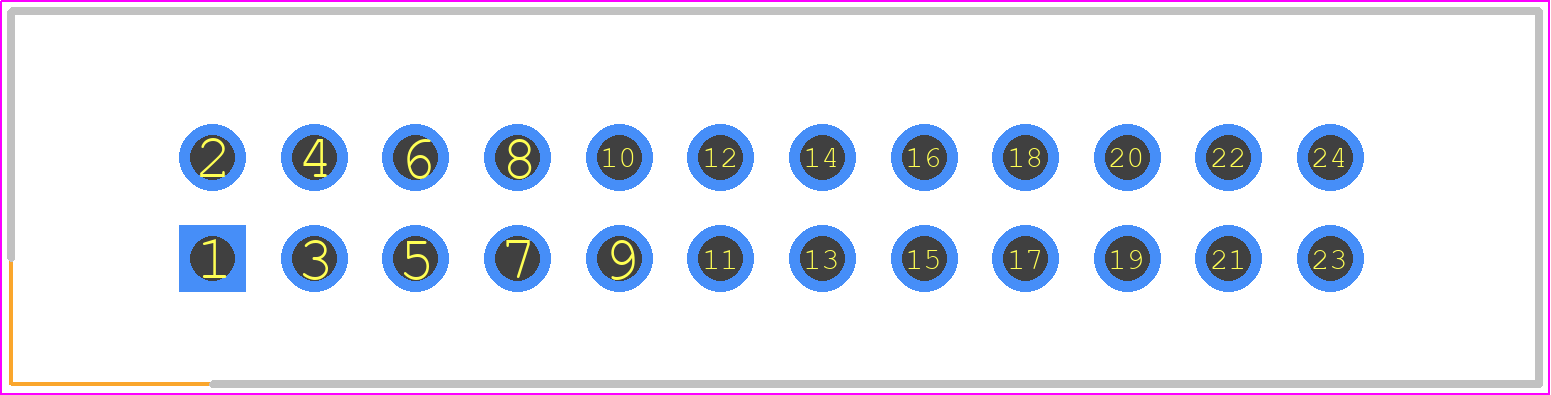

Use the download button to access the SBH11-PBPC-D12-ST-BK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SBH11,
or try a keyword search, such as Headers and Edge Type Connectors
