SBR20150CT - Diodes Incorporated

SBR20150CT Details

• Manufacturer Part Number:

  SBR20150CT

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

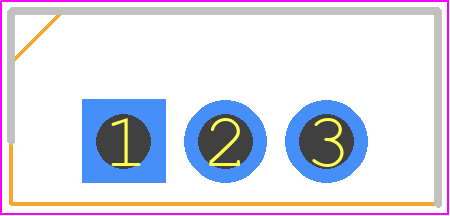

• Part Package Code:

  TO-220AB

• Package Description:

  ROHS COMPLIANT, PLASTIC PACKAGE-3

• Pin Count:

  3

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  6

• Application:

  FAST SOFT RECOVERY

• Case Connection:

  CATHODE

• Configuration:

  COMMON CATHODE, 2 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  0.79 V

• JEDEC-95 Code:

  TO-220AB

• JESD-30 Code:

  R-PSFM-T3

• JESD-609 Code:

  e3

• Non-rep Pk Forward Current-Max:

  150 A

• Number of Elements:

  2

• Number of Phases:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -65 °C

• Output Current-Max:

  10 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Reference Standard:

  UL RECOGNIZED

• Rep Pk Reverse Voltage-Max:

  150 V

• Surface Mount:

  NO

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30
