The recommended PCB footprint for the SBR30A40CTFP is a pad size of 1.5mm x 1.5mm with a 0.5mm spacing between pads. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.
The SBR30A40CTFP is rated for operation up to 150°C, but it's essential to consider the derating curve and ensure that the device does not exceed its maximum junction temperature (Tj) of 150°C. Proper thermal management and heat sinking are crucial in high-temperature environments.
To ensure reliability, follow the recommended operating conditions, storage conditions, and handling procedures outlined in the datasheet. Additionally, consider implementing overvoltage protection, overcurrent protection, and thermal monitoring to prevent damage from electrical overstress.
The SBR30A40CTFP is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching characteristics, such as turn-on and turn-off times, and ensure that the application's switching frequency does not exceed the device's capabilities.
The typical lead time for the SBR30A40CTFP can vary depending on the supplier, quantity, and region. However, according to Diodes Incorporated's website, the standard lead time is 12-14 weeks. It's recommended to check with authorized distributors or Diodes Incorporated directly for the most up-to-date lead time information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SBR30A40CTFP Overview

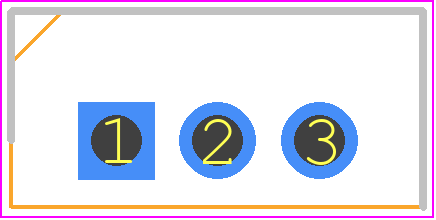

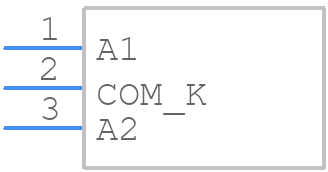

Use the download button to access the SBR30A40CTFP schematic symbol, PCB footprint, and 3D model.
