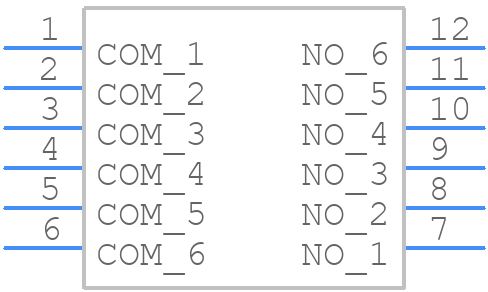

SBS9106TK - KNITTER-SWITCH

SBS9106TK Details

• Manufacturer Part Number:

  SBS9106TK

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  knitter-switch

• Actuator Color:

  WHITE

• Actuator Length:

  0.028 inch

• Actuator Material:

  POLYAMIDE

• Actuator Type:

  SLIDE

• Body Breadth:

  5.9944 mm

• Body Color:

  BLACK

• Body Height:

  3.7084 mm

• Body Length or Diameter:

  15.6718 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  TIN

• Contact Current(DC)-Max:

  0.025 A

• Contact (DC) Max Rating R Load:

  0.025A@24VDC

• Contact Function:

  OFF-ON

• Contact Resistance:

  0.05 mΩ

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  500VDC V

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  TIN

• Housing Material:

  POLYPHENYLENE SULPHIDE

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  POLYPHENYLENE SULPHIDE

• Mounting Feature:

  SURFACE MOUNT-STRAIGHT

• Number of Positions:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Solderability:

  REFLOW

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Finish:

  Tin (Sn)

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
