SBTC-2-20+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download SBTC-2-20+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

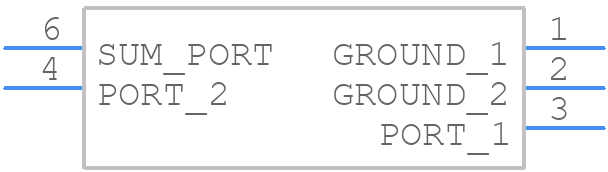

SBTC-2-20+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SBTC-2-20+ - Mini-Circuits PCB footprint - Other - Other - SBTC-2-20+-1
click to zoom
3D Models
SBTC-2-20+ - Mini-Circuits - 3D model - Other - SBTC-2-20+-1
click to zoom

SBTC-2-20+ Details

  • Manufacturer Part Number:

    SBTC-2-20+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.2 dB

  • Isolation-Min:

    14 dB

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    200 MHz

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

SBTC-2-20+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator tool on their website, which can help you determine the required components and their values.
  • The maximum power handling capability of the SBTC-2-20+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to 1W of continuous power. It's essential to derate the power handling capability based on the operating frequency and temperature.
  • Common issues with the SBTC-2-20+ can be troubleshooted by checking the PCB layout, soldering quality, and component values. Ensure that the device is properly terminated, and the input and output ports are matched to the system impedance. Also, check for any signs of physical damage or overheating.
  • The SBTC-2-20+ is a commercial-grade component, and its suitability for high-reliability or space applications depends on the specific requirements of the project. Mini-Circuits offers a range of high-reliability components, including the SBTC-2-20+/HR, which is designed for high-reliability applications.
