SBTC-2-20L+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS(0005)

Download SBTC-2-20L+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

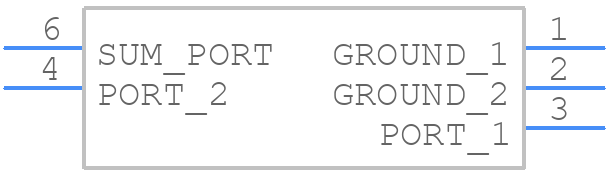

Symbol
SBTC-2-20L+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SBTC-2-20L+ - Mini-Circuits PCB footprint - Other - Other - AT1029
click to zoom
3D Models
SBTC-2-20L+ - Mini-Circuits - 3D model - Other - AT1029
click to zoom

SBTC-2-20L+ Details

  • Manufacturer Part Number:

    SBTC-2-20L+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.1

  • Additional Feature:

    ISOLATION-MIN (DB):14

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.2 dB

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • VSWR-Max:

    1.58

SBTC-2-20L+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The SBTC-2-20L+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF engineer to design the matching network.
  • The SBTC-2-20L+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize the risk of overheating.
  • The SBTC-2-20L+ is rated for operation up to 85°C. However, it's recommended to derate the power handling and ensure proper heat sinking to prevent overheating. Consult with a thermal engineer to ensure reliable operation in high-temperature environments.
  • Common issues with the SBTC-2-20L+ include poor return loss, high insertion loss, and overheating. To troubleshoot, check the PCB layout, impedance matching, and power handling. Consult the datasheet and application notes, and contact Mini-Circuits' technical support if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SBTC-2-20L+ Overview

Use the download button to access the SBTC-2-20L+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SBTC-, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
