SBTX2-113-2W+ - Mini-Circuits

Description: RF Transformer Surface Mount CASE STYLE: AH2765 50Ω 2.6 to 11.0 GHz

Download SBTX2-113-2W+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

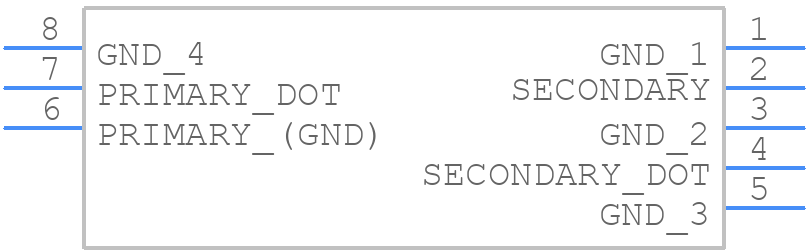

Symbol
SBTX2-113-2W+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SBTX2-113-2W+ - Mini-Circuits PCB footprint - Other - Other - AH2765_2023-1
click to zoom
3D Models
SBTX2-113-2W+ - Mini-Circuits - 3D model - Other - AH2765_2023-1
click to zoom

SBTX2-113-2W+ Details

  • Manufacturer Part Number:

    SBTX2-113-2W+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Cut-off Frequency-Max:

    11000 MHz

  • Cut-off Frequency-Min:

    2600 MHz

  • Height:

    8.89 mm

  • Insertion Loss:

    2.5 dB

  • Length:

    8.13 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    8.13 mm

SBTX2-113-2W+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required components and their values.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the device's performance may degrade at higher temperatures. It's recommended to derate the power handling and operating frequency at temperatures above +70°C.
  • Yes, the SBTX2-113-2W+ can be used in switching applications, but it's crucial to ensure that the device is properly biased and that the switching frequency is within the recommended range. Additionally, the device's power handling and thermal management should be carefully considered to prevent overheating and damage.
  • Common issues with the SBTX2-113-2W+ can often be attributed to improper PCB layout, incorrect impedance matching, or inadequate power supply decoupling. Mini-Circuits provides a troubleshooting guide on their website, which can help you identify and resolve common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SBTX2-113-2W+ Overview

Use the download button to access the SBTX2-113-2W+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SBTX2, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
