SC1230-01UTG - LITTELFUSE

Description: ESD Protection Diodes / TVS Diodes 30V 100A 30kV uDFN-6 Uni-dir TVS

Download SC1230-01UTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

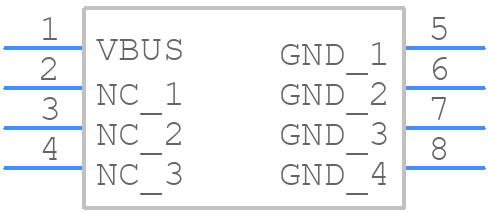

SC1230-01UTG - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
SC1230-01UTG - LITTELFUSE PCB footprint - Other - Other - µDFN6
click to zoom
3D Models
SC1230-01UTG - LITTELFUSE - 3D model - Other - µDFN6
click to zoom

SC1230-01UTG Details

  • Manufacturer Part Number:

    SC1230-01UTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Littelfuse Inc

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC1230-01UTG Overview

Use the download button to access the SC1230-01UTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC123, or try a keyword search, such as Transient Suppressors
