SC1602B - Sunlike Display

Description: 16 CHARACTERS x 2 LINES LCD MODULES,2.7〜5.5 V POWER SUPPLY, 1/16 DUTY CYCLE,8-BIT PARALLEL INTERFACE,5 x 7 DOTS WITH CURSOR,85.0 x 30.0 x 8.8 ( 12.7 LED ).

Download SC1602B Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SC1602B model

Email notifications will be applied after download.

Send part feedback

Symbol

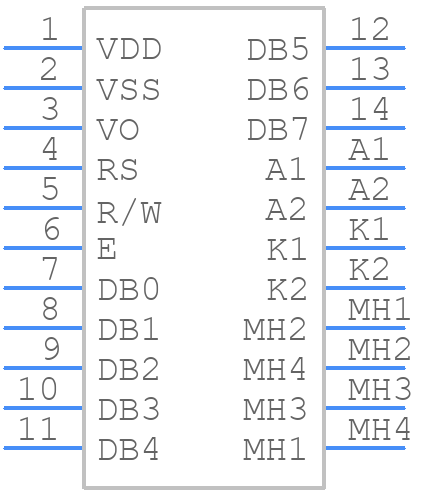

SC1602B - Sunlike Display - PCB symbol

PCB Footprints

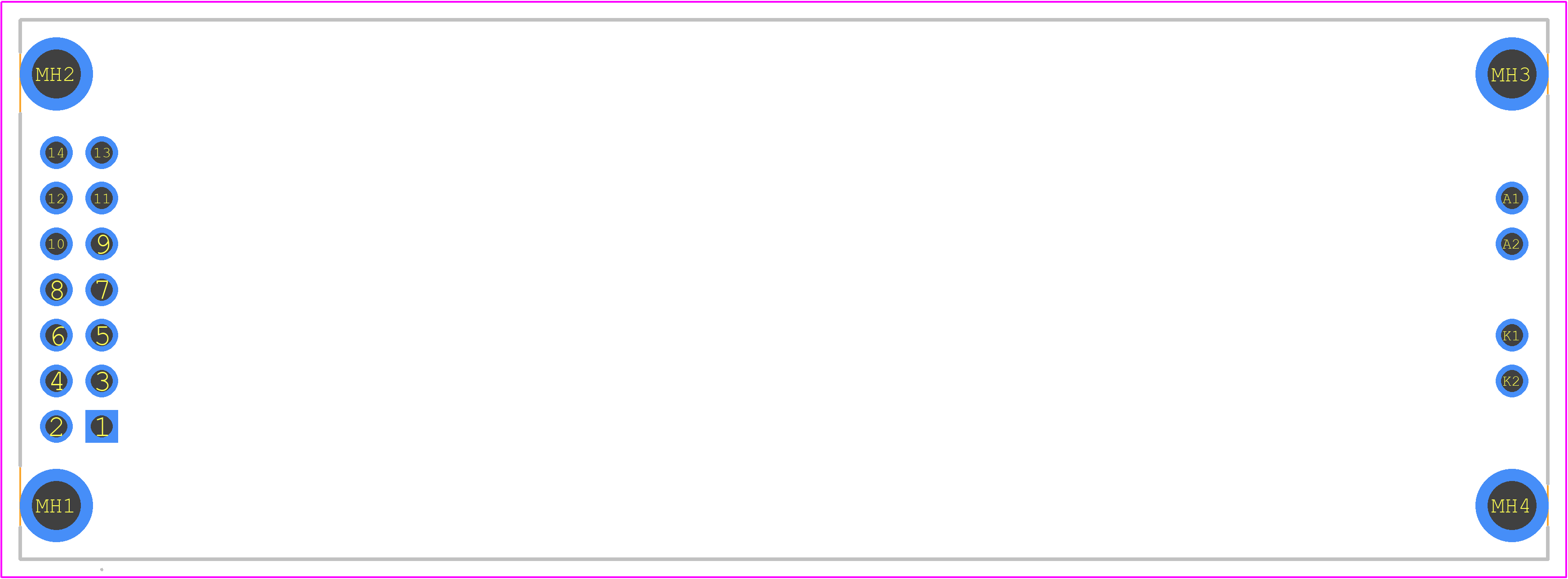

SC1602B - Sunlike Display PCB footprint - Other - Other - SC1602B-2

3D Models

SC1602B - Sunlike Display - 3D model - Other - SC1602B-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SC1602B
Part Number SC1602B
Manufacturer Sunlike Display
Pin Count 22
Part Category Display
Package Category Other
Footprint Name Other - SC1602B-2
Released Date Nov 10, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SC1602B Details

Manufacturer Part Number:
SC1602B
Part Life Cycle Code:
Contact Manufacturer
Manufacturer:
Sunlike Display Tech Corp
Character Font Type:
5x7 + CSR
Characters Per Row:
16
Display Height:
5.56 mm
Overall Depth:
8.8 mm
Overall Height:
30 mm
Overall Length:
85 mm
Rows Per Display:
2
Supply Voltage-Nom:
5 V
Viewing Area Height:
16 mm

Trust Checks

Community Provided

System Verified

Community Approved

SC1602B Overview

Use the download button to access the SC1602B schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SC160, or try a keyword search, such as Displays
