SC18IS600IPW,112 - NXP

Description: NXP - SC18IS600IPW,112 - Interface Bridges, 2.4 V, 3.6 V, TSSOP, 16 Pins, -40 °C

Download SC18IS600IPW,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

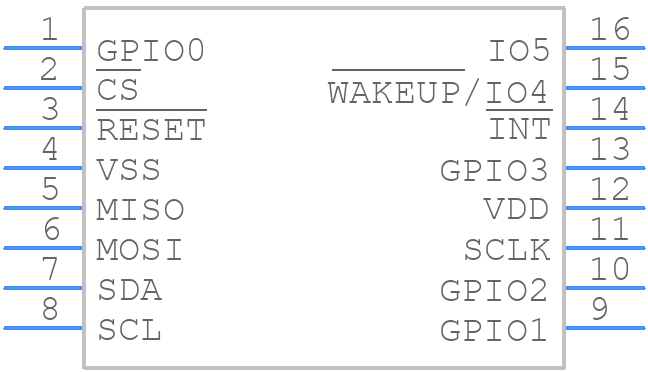

Symbol
SC18IS600IPW,112 - NXP - PCB symbol
click to zoom
PCB Footprints
SC18IS600IPW,112 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16 (SOT403-1)
click to zoom
3D Models
SC18IS600IPW,112 - NXP - 3D model - Small Outline Packages - TSSOP16 (SOT403-1)
click to zoom

SC18IS600IPW,112 Details

  • Manufacturer Part Number:

    SC18IS600IPW,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT403-1

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Bus Compatibility:

    I2C

  • Clock Frequency-Max:

    18 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, I2C

SC18IS600IPW,112 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for SC18IS600IPW,112 is 1.65V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 1.5V to 6.0V, but with reduced performance and reliability.
  • To ensure reliable communication with the SC18IS600IPW,112 in noisy environments, it's recommended to use a common-mode choke or a ferrite bead in the power supply lines, and to implement proper PCB layout and grounding techniques. Additionally, consider using a shielded cable or a twisted pair for the I2C bus.
  • The SC18IS600IPW,112 supports a maximum clock frequency of 400 kHz, as specified in the datasheet. However, it's essential to note that the device can operate at higher frequencies, but with reduced performance and reliability.
  • To handle bus contention and arbitration in a multi-master I2C bus with SC18IS600IPW,112, it's recommended to implement a bus arbitration mechanism, such as a priority-based arbitration or a time-division multiplexing (TDM) approach. Additionally, consider using a bus monitor or a bus analyzer to detect and resolve bus contention issues.
  • The SC18IS600IPW,112 can support a maximum capacitance load of 400 pF on the SDA and SCL lines, as specified in the datasheet. However, it's essential to note that excessive capacitance can affect the device's performance and reliability.
