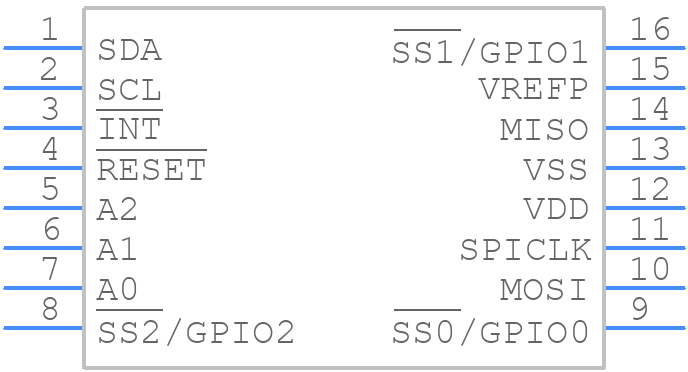

SC18IS606PW - NXP

SC18IS606PW Details

• Manufacturer Part Number:

  SC18IS606PW

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  TSSOP-12

• Country Of Origin:

  Mainland China

• HTS Code:

  8542.31.00.30

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  6

• Address Bus Width:

  3

• Bus Compatibility:

  I2C; SPI

• Clock Frequency-Max:

  1.875 MHz

• Data Transfer Rate-Max:

  0.225 MBps

• JESD-30 Code:

  R-PDSO-G16

• Length:

  5 mm

• Number of Terminals:

  16

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  4 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, I2C
