SCA-3-11+ footprint, schematic symbol and 3D model by Mini-Circuits

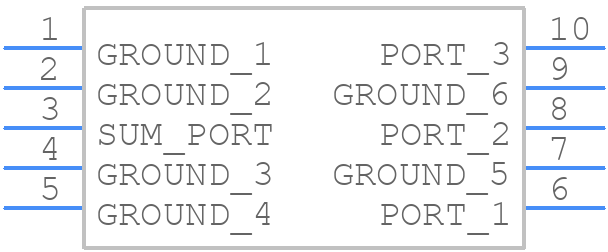

Symbol

click to zoom

PCB Footprints

SCA-3-11+ - Mini-Circuits PCB footprint - Other - Other - SCA-3-11+-1

click to zoom

3D Models

SCA-3-11+ - Mini-Circuits - 3D model - Other - SCA-3-11+-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SCA-3-11+
Part Number SCA-3-11+
Manufacturer Mini-Circuits
Pin Count 10
Part Category Filter
Package Category Other
Footprint Name Other - SCA-3-11+-1
Released Date Feb 11, 2022
Last Modified Date Jan 15, 2024 7:15 AM UTC
Pinout / Pin List Click Here (Member Only)

SCA-3-11+ Details

Manufacturer Part Number:
SCA-3-11+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, CASE DZ943, 10 PIN
Country Of Origin:
India
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
6.2
Additional Feature:
ISOLATION-MIN (DB):14
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
26.99 dBm
Insertion Loss-Max:
1.5 dB
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
10
Operating Frequency-Max:
940 MHz
Operating Frequency-Min:
100 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-45 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
FL10,.24
RF/Microwave Device Type:
COMBINER
Surface Mount:
YES
VSWR-Max:
1.88

SCA-3-11+ Frequently Asked Questions (FAQs)

The maximum power handling of the SCA-3-11+ is 1 watt. Exceeding this power limit can cause damage to the device.
The SCA-3-11+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the impedance of your system to 50 ohms.
The operating temperature range of the SCA-3-11+ is -40°C to +85°C. Operating outside this range can affect the device's performance and reliability.
The SCA-3-11+ is a commercial-grade device and may not meet the requirements for high-reliability or space applications. For such applications, consider using a radiation-hardened or high-reliability version of the device.
To troubleshoot issues with the SCA-3-11+, check the power supply voltage, input and output impedance matching, and the device's operating temperature. Also, verify that the device is properly soldered and connected to the PCB.

Trust Checks

Community Provided

System Verified

Community Approved

SCA-3-11+ Overview

Use the download button to access the SCA-3-11+ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SCA-3, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
