Part Image

SCA3100-D04 - Murata Electronics

Description: MEMS Accelerometer, 3-Axis, Digital, X, Y, Z, 2g, SMD, 3.6 V, 3 V RoHS Compliant: Yes

Download SCA3100-D04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

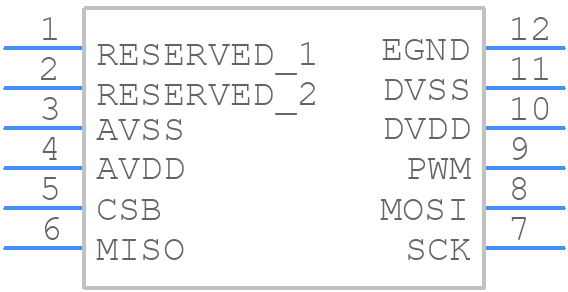

SCA3100-D04 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

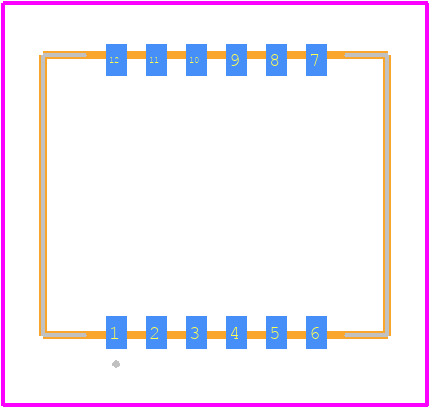

SCA3100-D04 - Murata Electronics PCB footprint - Other - Other - SCA3100-D04-4
click to zoom
3D Models
SCA3100-D04 - Murata Electronics - 3D model - Other - SCA3100-D04-4
click to zoom

SCA3100-D04 Details

  • Manufacturer Part Number:

    SCA3100-D04

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-12

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Body Breadth:

    7.6 mm

  • Body Height:

    3.3 mm

  • Body Length or Diameter:

    8.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

SCA3100-D04 Frequently Asked Questions (FAQs)

  • Murata recommends a 4-layer PCB with a solid ground plane and a separate power plane for the VCC and VDD pins. The layout should also minimize the distance between the SCA3100-D04 and the antenna to reduce signal loss.
  • The SCA3100-D04 requires calibration for accurate measurements. This can be done by following the calibration procedure outlined in the datasheet, which involves applying a known magnetic field and adjusting the internal calibration registers accordingly.
  • The SCA3100-D04 is rated for operation from -40°C to 125°C, but it's recommended to operate within the -20°C to 85°C range for optimal performance and accuracy.
  • Yes, the SCA3100-D04 is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and soldering procedures to ensure the device is securely attached to the PCB.
  • The SCA3100-D04 communicates via a standard I2C interface, which can be easily interfaced with most microcontrollers. The device requires a 3.3V power supply and has a maximum clock frequency of 400 kHz.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCA3100-D04 Overview

Use the download button to access the SCA3100-D04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCA31, or try a keyword search, such as Other Sensors/Transducers

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
