Murata provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to minimize noise and interference.
The SCA3300-D01-10 does not require calibration in the classical sense. However, it's recommended to perform a zero-point adjustment by taking a few readings with the sensor at rest and averaging them to determine the zero-g offset. This value can then be subtracted from subsequent readings to improve accuracy.
The SCA3300-D01-10 is rated for operation from -40°C to 125°C. However, it's essential to note that the sensor's accuracy and sensitivity may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for more information on temperature-related performance characteristics.
Yes, the SCA3300-D01-10 is designed to operate in high-vibration environments. However, it's essential to ensure that the sensor is properly mounted and secured to the PCB to prevent damage or dislodging. Additionally, the sensor's performance may be affected by extreme vibration, so it's recommended to consult the datasheet and application notes for more information.
The SCA3300-D01-10 has an analog output, so it can be interfaced with a microcontroller using an analog-to-digital converter (ADC). The sensor's output voltage range is 0.5V to 4.5V, so it's essential to ensure that the microcontroller's ADC can accommodate this range. Consult the microcontroller's datasheet and the SCA3300-D01-10's datasheet for more information on interfacing and signal conditioning.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCA3300-D01-10 Overview

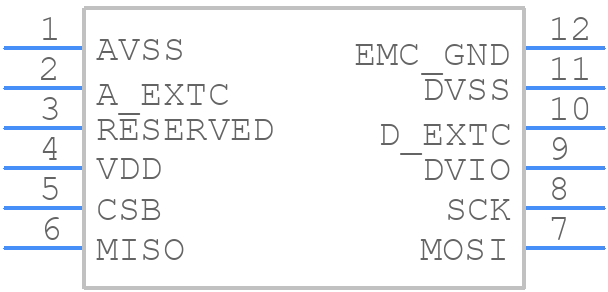

Use the download button to access the SCA3300-D01-10 schematic symbol, PCB footprint, and 3D model.
