SCA61T-FA1H1G-1 Frequently Asked Questions (FAQs)

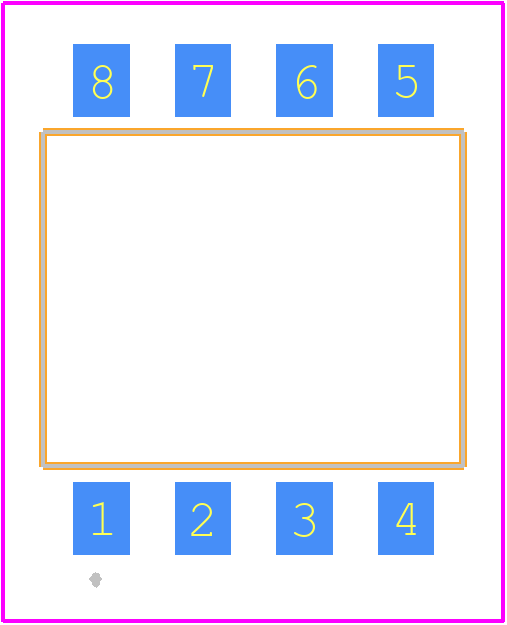

• What is the recommended PCB layout and land pattern for the SCA61T-FA1H1G-1?
  Murata provides a recommended PCB layout and land pattern in their application note AN201202, which can be found on their website. It's essential to follow this layout to ensure proper mounting and to prevent damage to the device.
• How do I calibrate the SCA61T-FA1H1G-1 accelerometer?
  The SCA61T-FA1H1G-1 does not require calibration. It is a self-contained accelerometer with internal signal conditioning and temperature compensation. However, it's recommended to perform a zero-g offset calibration in the application firmware to ensure accurate measurements.
• What is the maximum operating temperature range for the SCA61T-FA1H1G-1?
  The SCA61T-FA1H1G-1 can operate in a temperature range of -40°C to 125°C. However, the device's accuracy and sensitivity may degrade at extreme temperatures. It's essential to consider the operating temperature range in the application design.
• Can I use the SCA61T-FA1H1G-1 in a high-vibration environment?
  Yes, the SCA61T-FA1H1G-1 is designed to operate in high-vibration environments. It has a high shock resistance of 10,000 g and can withstand vibrations up to 20 g RMS. However, it's essential to ensure proper mounting and secure the device to prevent damage.
• How do I interface the SCA61T-FA1H1G-1 with a microcontroller?
  The SCA61T-FA1H1G-1 has an analog output that can be interfaced with a microcontroller's analog-to-digital converter (ADC). The output voltage range is 0.5 V to 4.5 V, and the sensitivity is 1.5 V/g. A voltage regulator and an ADC with a suitable resolution (e.g., 12-bit) are recommended for accurate measurements.
