SCCS30B106SRB - Kyocera AVX

Description: Cap Supercap 10F 2.7V -10% to 30% (10 X 30mm) Radial Plastic Cylindrical Can 5.5mm 30uA 0.075 Ohm 65C Bulk

Download SCCS30B106SRB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SCCS30B106SRB - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

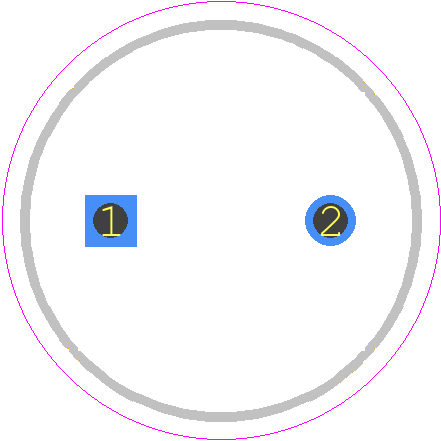

SCCS30B106SRB - Kyocera AVX PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 10*30
click to zoom
3D Models
SCCS30B106SRB - Kyocera AVX - 3D model - Capacitor, Polarized Radial Diameter - 10*30
click to zoom

SCCS30B106SRB Details

  • Manufacturer Part Number:

    SCCS30B106SRB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7

  • Capacitance:

    10000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    2.7 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    5.5 mm

  • Terminal Shape:

    WIRE

SCCS30B106SRB Frequently Asked Questions (FAQs)

  • The recommended land pattern for SCCS30B106SRB is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask clearance of 0.2mm.
  • Handle the component by the edges, avoid touching the ceramic body or the terminations, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • The maximum allowable voltage derating for SCCS30B106SRB is 80% of the rated voltage, which is 30V in this case, so the maximum allowable voltage derating is 24V.
  • Yes, SCCS30B106SRB is rated for operation up to 125°C, but the capacitance and ESR may vary with temperature, so ensure to check the datasheet for temperature-related specifications.
  • Determine the correct capacitance value by considering the operating frequency, voltage, and current requirements of your application, and consult the datasheet for the available capacitance values and tolerances.
