SCCT47B406SRB - Kyocera AVX

SCCT47B406SRB Frequently Asked Questions (FAQs)

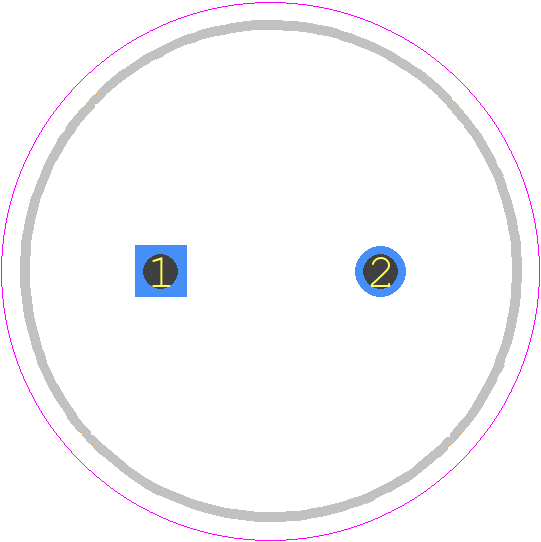

• What is the recommended land pattern for SCCT47B406SRB?
  The recommended land pattern for SCCT47B406SRB can be found in the Kyocera AVX Components' recommended land pattern document, which is typically available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
• How do I handle the SCCT47B406SRB during assembly to prevent damage?
  To prevent damage during assembly, it is recommended to handle the SCCT47B406SRB by the edges, avoiding touching the component's terminals or body. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage. Additionally, follow proper soldering techniques and temperatures to prevent thermal damage.
• What is the maximum operating temperature range for SCCT47B406SRB?
  While the datasheet provides the typical operating temperature range, the maximum operating temperature range for SCCT47B406SRB is typically specified as -55°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade at extreme temperatures, and derating may be necessary for high-reliability applications.
• Can I use SCCT47B406SRB in a high-vibration environment?
  Yes, SCCT47B406SRB is designed to withstand moderate vibration levels. However, it's essential to ensure that the component is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, consider using vibration-resistant mounting options, such as underfill or potting, to enhance the component's reliability in high-vibration environments.
• How do I determine the equivalent series resistance (ESR) of SCCT47B406SRB?
  The ESR of SCCT47B406SRB can be determined by measuring the impedance of the component at high frequencies (typically above 100 kHz) using an impedance analyzer or a vector network analyzer. The ESR can also be estimated using the component's datasheet values, such as the capacitance and the dissipation factor (tan δ).
