SCCV60B107SRB - Kyocera AVX

Description: AVX - SCCV60B107SRB - CAP, 100F, 2.7V, 20%, SUPER CAP, RADIAL

Download SCCV60B107SRB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SCCV60B107SRB - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

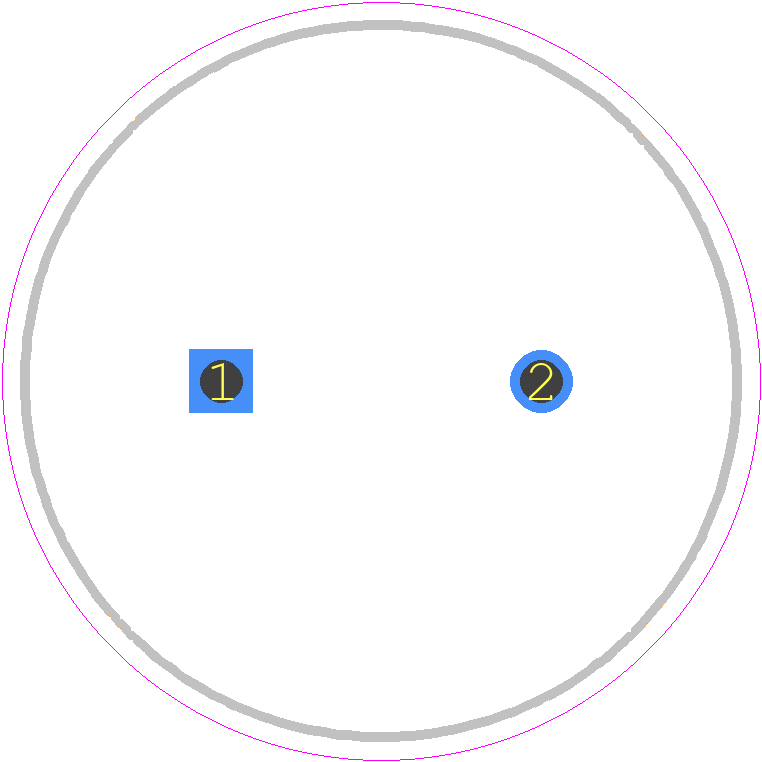

SCCV60B107SRB - Kyocera AVX PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 18x60-
click to zoom
3D Models
SCCV60B107SRB - Kyocera AVX - 3D model - Capacitor, Polarized Radial Diameter - 18x60-
click to zoom

SCCV60B107SRB Details

  • Manufacturer Part Number:

    SCCV60B107SRB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.95

  • Capacitance:

    100000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    60 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    2.7 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    8 mm

  • Terminal Shape:

    WIRE

SCCV60B107SRB Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the SCCV60B107SRB is between 250°C to 260°C for a maximum of 10 seconds.
  • Yes, the SCCV60B107SRB is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • The SCCV60B107SRB is designed to operate in high-temperature environments up to 125°C, with a capacitance tolerance of ±20% at 120 Hz and 20°C.
  • Yes, the SCCV60B107SRB is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum ripple current rating for the SCCV60B107SRB is 1.5 Arms at 100 kHz and 20°C.
