SCCX50B207SSB - Kyocera AVX

Description: Supercapacitors / Ultracapacitors 2.7V 200F ER6mOhm

Download SCCX50B207SSB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SCCX50B207SSB - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

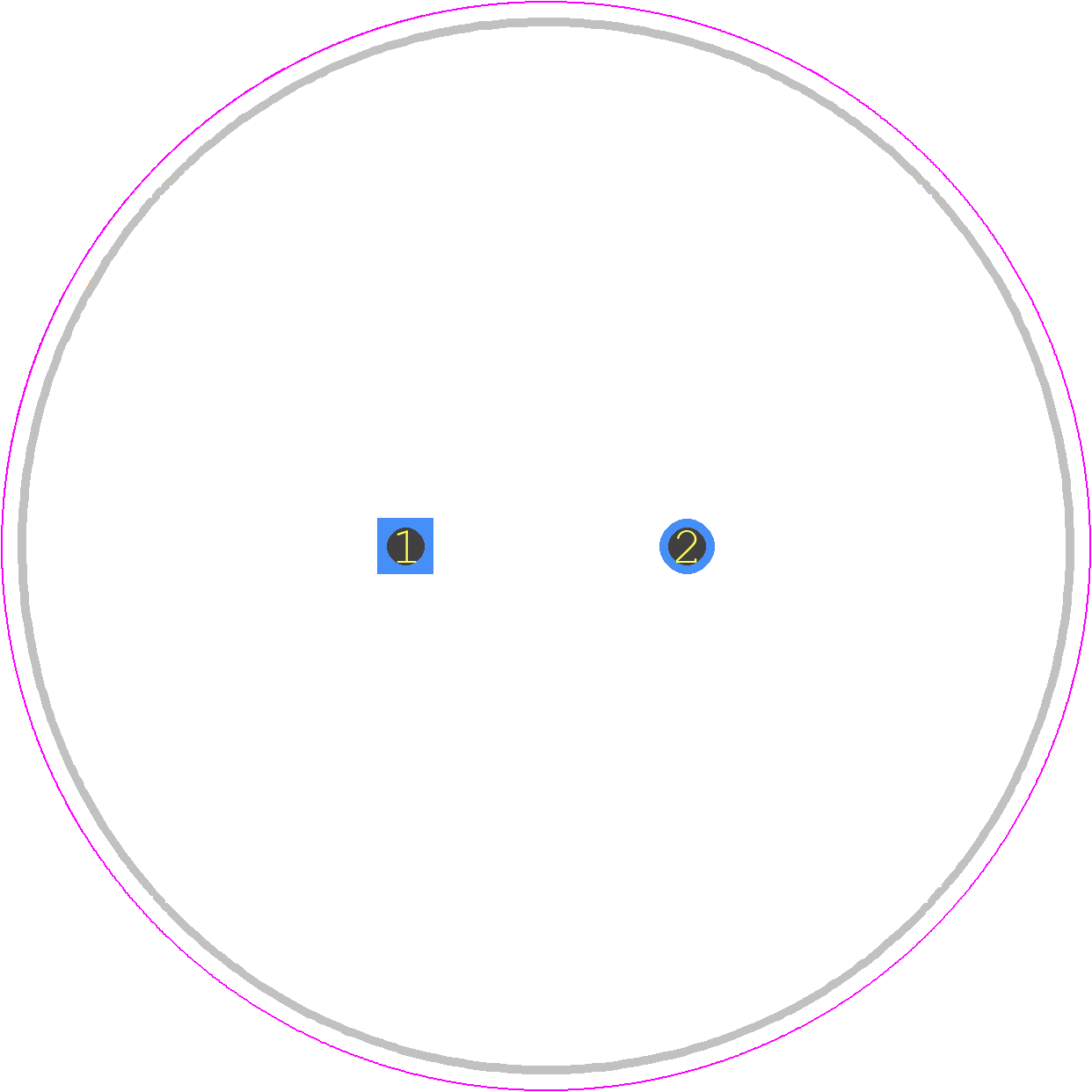

SCCX50B207SSB - Kyocera AVX PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30*52
click to zoom
3D Models
SCCX50B207SSB - Kyocera AVX - 3D model - Capacitor, Polarized Radial Diameter - 30*52
click to zoom

SCCX50B207SSB Details

  • Manufacturer Part Number:

    SCCX50B207SSB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.95

  • Capacitance:

    200000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    2.7 V

  • Surface Mount:

    NO

  • Terminal Shape:

    SNAP-IN

SCCX50B207SSB Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the SCCX50B207SSB is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the SCCX50B207SSB is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.
  • The maximum operating voltage derating for the SCCX50B207SSB is 80% of the rated voltage, which is 16V for this specific part.
  • Yes, the SCCX50B207SSB is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications.
  • The MSL of the SCCX50B207SSB is 3, which means it can withstand exposure to moisture for up to 168 hours.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCCX50B207SSB Overview

Use the download button to access the SCCX50B207SSB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCCX5, or try a keyword search, such as Special Capacitors
