SCD30 footprint, schematic symbol and 3D model by Sensirion

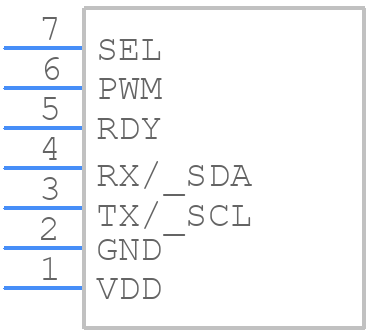

Symbol

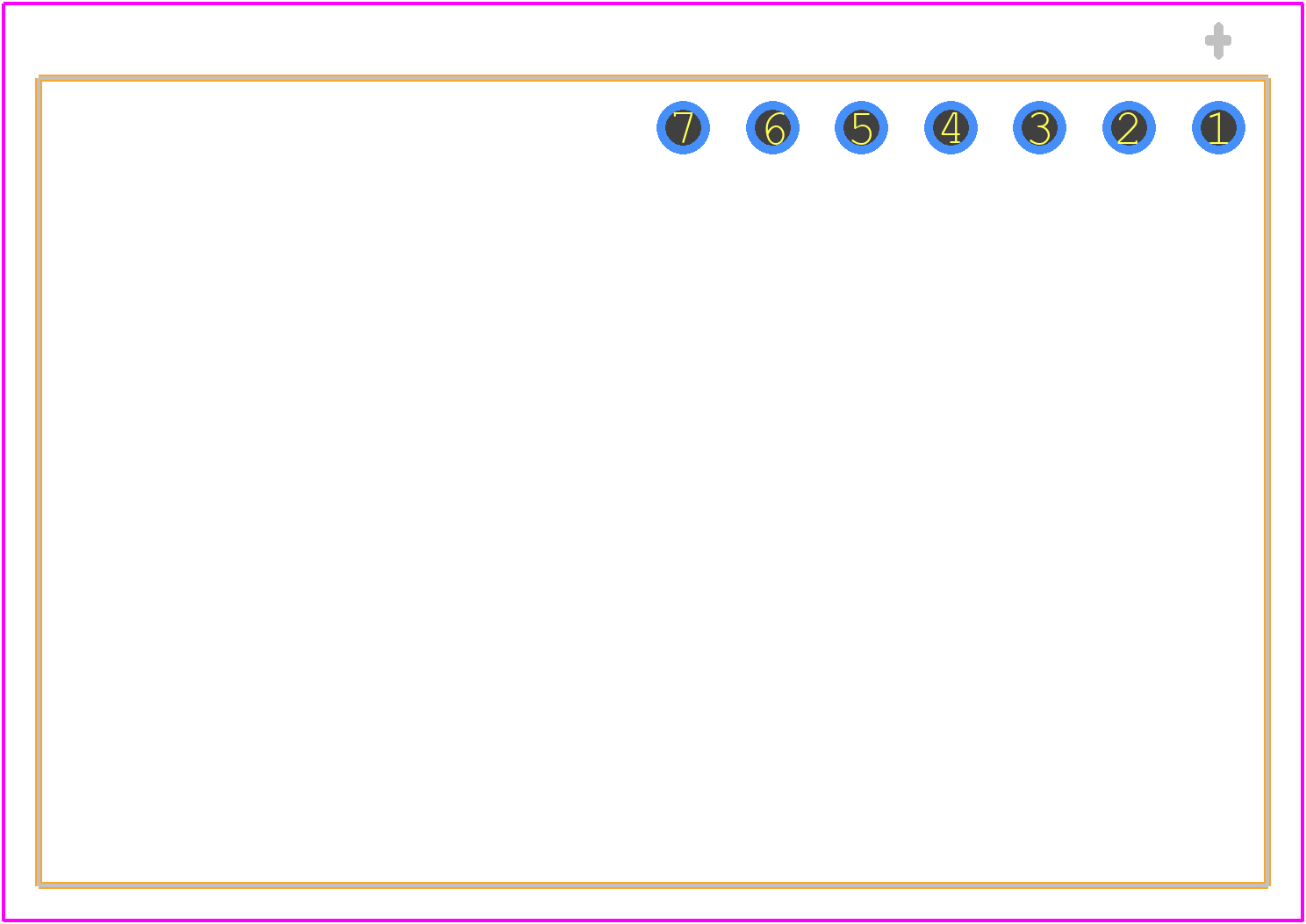

PCB Footprints

3D Models

SCD30 Details

The recommended operating temperature range for the SCD30 is between 0°C and 50°C (32°F to 122°F).
The SCD30 has a maximum measurement rate of 2 measurements per second. It is recommended to read data at a rate of 1 measurement per second to ensure accurate and reliable results.
The SCD30 has an accuracy of ±(30 ppm + 3% of reading) for CO2 measurements.
Yes, the SCD30 is designed to operate in humid environments. It can tolerate relative humidity up to 95% RH, non-condensing.
The SCD30 does not require calibration. It is factory-calibrated and does not need to be recalibrated in the field.

Expert Contribution

System Verified

Community Approved

Use the download button to access the SCD30 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Other Sensors/Transducers
