SCD41-D-R1 - Sensirion

Description: Air Quality Sensors Sensirion photoacoustic CO2 sensor 10.1 x 10.1 x 6.5 mm3

Download SCD41-D-R1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

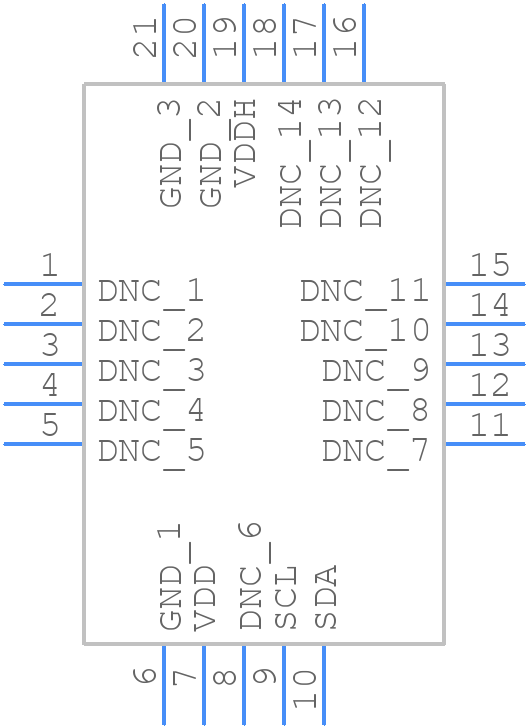

SCD41-D-R1 - Sensirion - PCB symbol
click to zoom
PCB Footprints
SCD41-D-R1 - Sensirion PCB footprint - Other - Other - 10.1 x 10.1 x 6.5 mm_2024
click to zoom
3D Models
SCD41-D-R1 - Sensirion - 3D model - Other - 10.1 x 10.1 x 6.5 mm_2024
click to zoom

SCD41-D-R1 Details

  • Manufacturer Part Number:

    SCD41-D-R1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Body Breadth:

    10.1 mm

  • Body Height:

    5.5 mm

  • Body Length or Diameter:

    10.1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    21

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Output:

    DIGITAL

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    LCC21,.4SQ

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    GAS SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

SCD41-D-R1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SCD41-D-R1 is -40°C to 70°C.
  • The SCD41-D-R1 does not require calibration. It is a calibrated sensor and the calibration data is stored in the sensor's EEPROM.
  • The response time of the SCD41-D-R1 is typically around 60 seconds for CO2 and 30 seconds for temperature and humidity.
  • Yes, the SCD41-D-R1 is suitable for outdoor applications, but it should be protected from direct sunlight and extreme weather conditions.
  • The SCD41-D-R1 has a fixed I2C address of 0x62. Make sure to use this address when communicating with the sensor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCD41-D-R1 Overview

Use the download button to access the SCD41-D-R1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCD41, or try a keyword search, such as Other Sensors/Transducers
