SCD41-D-R2 footprint, schematic symbol and 3D model by Sensirion

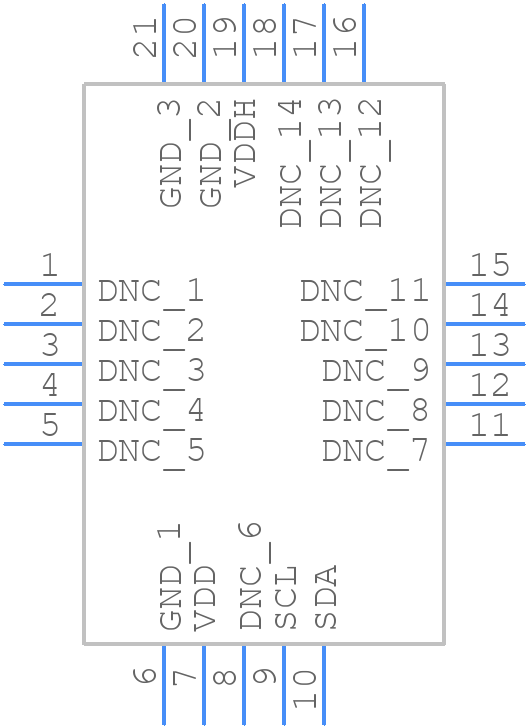

Symbol

click to zoom

PCB Footprints

SCD41-D-R2 - Sensirion PCB footprint - Other - Other - SCD41-D-R2-1

click to zoom

3D Models

SCD41-D-R2 - Sensirion - 3D model - Other - SCD41-D-R2-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SCD41-D-R2
Part Number SCD41-D-R2
Manufacturer Sensirion
Pin Count 21
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SCD41-D-R2-1
Released Date Mar 23, 2021
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

SCD41-D-R2 Details

Manufacturer Part Number:
SCD41-D-R2
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Switzerland
ECCN Code:
EAR99
Manufacturer:
Sensirion
Body Breadth:
10.1 mm
Body Height:
5.5 mm
Body Length or Diameter:
10.1 mm
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
21
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-10 °C
Output:
DIGITAL
Output Type:
DIGITAL VOLTAGE
Package Equivalence Code:
LCC21,.4SQ
Package Shape/Style:
SQUARE
Sensors/Transducers Type:
GAS SENSOR
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.4 V
Surface Mount:
YES
Technology:
CMOS

SCD41-D-R2 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the SCD41-D-R2 is between 0°C and 50°C (32°F to 122°F).
The SCD41-D-R2 does not require calibration. It is a calibrated sensor and the calibration data is stored in the sensor's EEPROM.
The response time of the SCD41-D-R2 is typically around 60 seconds for CO2 and 30 seconds for temperature and humidity.
The SCD41-D-R2 is designed for indoor use only. It is not suitable for outdoor applications due to its sensitivity to environmental factors such as direct sunlight, rain, and extreme temperatures.
The SCD41-D-R2 communicates via I2C or UART. You can connect it to your microcontroller using the I2C or UART interface, depending on your specific requirements.

Trust Checks

System Verified

SCD41-D-R2 Overview

Use the download button to access the SCD41-D-R2 schematic symbol, PCB footprint, and 3D model.
