SCF47X-500-S2R4B005JV - Yageo Group

Description: Common Mode Choke Coil. Three-Phase Type. AC Line Filter.

Download SCF47X-500-S2R4B005JV Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SCF47X-500-S2R4B005JV model

Email notifications will be applied after download.

Send part feedback

Symbol

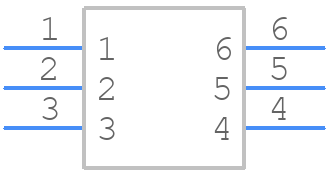

SCF47X-500-S2R4B005JV - Yageo Group - PCB symbol

PCB Footprints

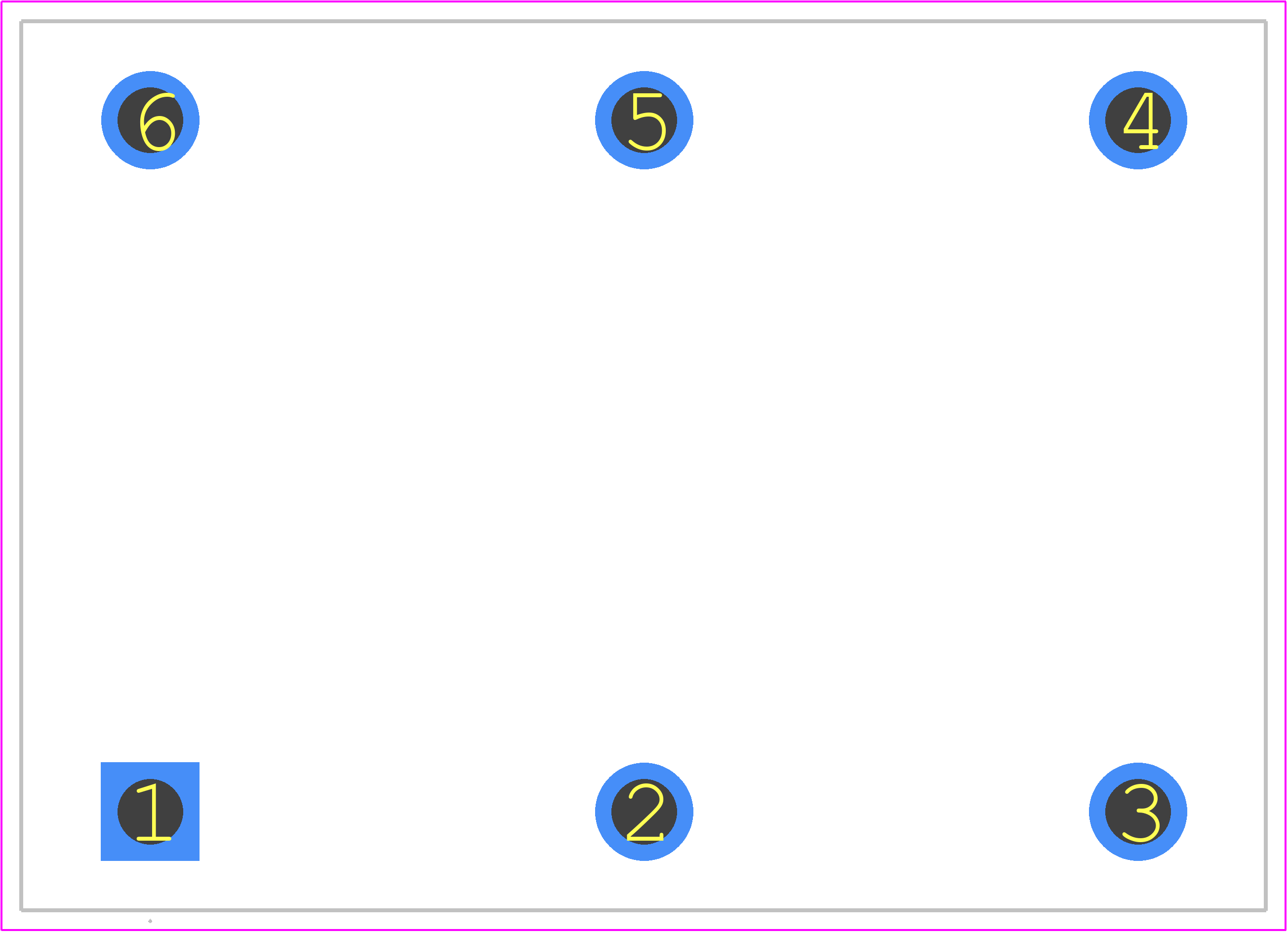

SCF47X-500-S2R4B005JV - Yageo Group PCB footprint - Other - Other - 63.00mm x 45.00mm

3D Models

SCF47X-500-S2R4B005JV - Yageo Group - 3D model - Other - 63.00mm x 45.00mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for SCF47X-500-S2R4B005JV
Part Number SCF47X-500-S2R4B005JV
Manufacturer Yageo Group
Pin Count 6
Part Category Filter
Package Category Other
Footprint Name Other - 63.00mm x 45.00mm
Released Date Oct 14, 2024
Last Modified Date Feb 23, 2026 6:46 PM UTC
Pinout / Pin List Click Here (Member Only)

SCF47X-500-S2R4B005JV Details

Manufacturer Part Number:
SCF47X-500-S2R4B005JV
Manufacturer:
YAGEO Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SCF47X-500-S2R4B005JV Overview

Use the download button to access the SCF47X-500-S2R4B005JV schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SCF47, or try a keyword search, such as Mains Filters
