SCG-2-242+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SURF MT RoHS

Download SCG-2-242+ Model

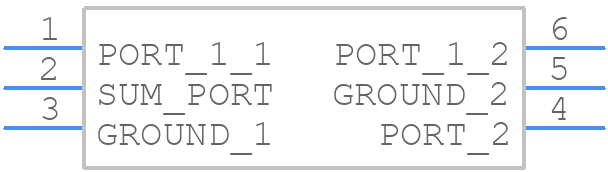

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SCG-2-242+ - Mini-Circuits PCB footprint - Other - Other - SCG-2-242+
click to zoom
3D Models
SCG-2-242+ - Mini-Circuits  - 3D model - Other - SCG-2-242+
click to zoom

SCG-2-242+ Details

  • Manufacturer Part Number:

    SCG-2-242+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.99

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    1.3 dB

  • Isolation-Min:

    9 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2400 MHz

  • Operating Frequency-Min:

    1000 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.05,25

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Nickel/Silver (Sn/Ni/Ag)

  • VSWR-Max:

    1.22

SCG-2-242+ Frequently Asked Questions (FAQs)

  • A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to connect the device's ground pins to the ground plane using vias. Additionally, keep the signal traces short and away from noise sources.
  • To ensure proper biasing, follow the recommended biasing circuit in the datasheet. Use a voltage regulator to provide a stable voltage supply, and add decoupling capacitors to filter out noise. Also, ensure the bias resistors are of high quality and have low thermal noise.
  • The SCG-2-242+ can handle up to 1W of input power. However, it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and prevent overheating.
  • To troubleshoot common issues, start by checking the PCB layout and grounding scheme. Ensure that the device is properly biased and that the input and output impedances are matched. Use a spectrum analyzer to identify any unwanted oscillations or spurious signals. If issues persist, consult the datasheet and application notes or contact Mini-Circuits' technical support.
  • Yes, the SCG-2-242+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout considerations to ensure proper operation and to prevent oscillations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCG-2-242+ Overview

Use the download button to access the SCG-2-242+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCG-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
