SCG-2-322+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SURF MT RoHS

Download SCG-2-322+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

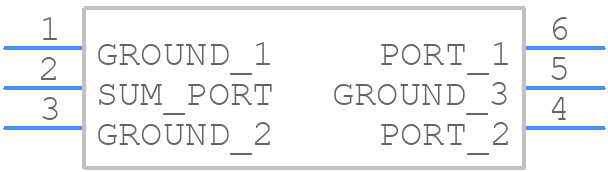

Symbol
SCG-2-322+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCG-2-322+ - Mini-Circuits PCB footprint - Other - Other - SCG-2-322+-2
click to zoom
3D Models
SCG-2-322+ - Mini-Circuits - 3D model - Other - SCG-2-322+-2
click to zoom

SCG-2-322+ Details

  • Manufacturer Part Number:

    SCG-2-322+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    1.3 dB

  • Isolation-Min:

    13 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    3200 MHz

  • Operating Frequency-Min:

    1800 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.05,25

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.43

SCG-2-322+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The SCG-2-322+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator tool on their website to help with the design.
  • The maximum power handling of the SCG-2-322+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
  • The SCG-2-322+ requires a positive bias voltage (Vdd) of 3.3V to 5V, and a negative bias voltage (Vgg) of -0.5V to -2V. The recommended bias current is 10mA to 20mA. Refer to the datasheet for more information on biasing and stability considerations.
  • The SCG-2-322+ operates over a temperature range of -40°C to +85°C. However, the device's performance may vary with temperature. It's essential to consider temperature effects when designing and testing your system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCG-2-322+ Overview

Use the download button to access the SCG-2-322+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCG-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
