SCG-3-392+ - Mini-Circuits

Description: Signal Conditioning 3 Ways LTCC Power Splitter, 2700 - 3900 MHz, 50 Ohm

Download SCG-3-392+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

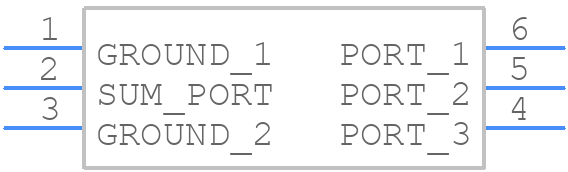

SCG-3-392+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCG-3-392+ - Mini-Circuits PCB footprint - Other - Other - SCG-3-392+-1
click to zoom
3D Models
SCG-3-392+ - Mini-Circuits - 3D model - Other - SCG-3-392+-1
click to zoom

SCG-3-392+ Details

  • Manufacturer Part Number:

    SCG-3-392+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Isolation-Min:

    14 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    3900 MHz

  • Operating Frequency-Min:

    2700 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.05,25

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.58

SCG-3-392+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the component. A low-impedance path to the ground plane is crucial for optimal performance.
  • The device has a thermal pad on the bottom, which should be connected to a heat sink or a thermal ground plane. Ensure good thermal conductivity between the device and the heat sink/thermal ground plane.
  • The maximum input power is not explicitly stated in the datasheet, but Mini-Circuits recommends limiting the input power to 20 dBm (100 mW) to ensure reliable operation and prevent damage.
  • Yes, the SCG-3-392+ can be used in a push-pull configuration, but it's essential to ensure that the two devices are properly matched and biased to achieve optimal performance.
  • The typical noise figure of the SCG-3-392+ is around 3.5 dB, but this can vary depending on the specific application, operating frequency, and bias conditions.
