SCH5627P-NS - Microchip

SCH5627P-NS Details

• Manufacturer Part Number:

  SCH5627P-NS

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

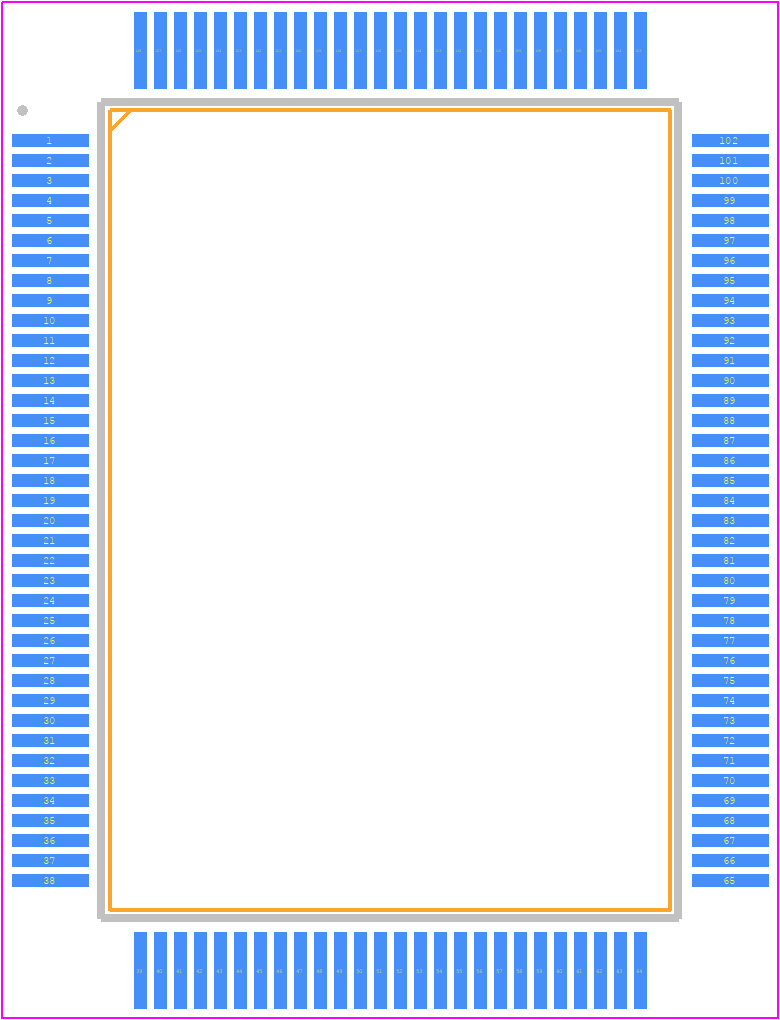

• Package Description:

  QFP-128

• Country Of Origin:

  Thailand

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Address Bus Width:

  4

• Boundary Scan:

  YES

• Bus Compatibility:

  IBM PC-AT; PS/2; LPC; ISA; I2C; PCI; SMBUS; UART

• Clock Frequency-Max:

  32 MHz

• External Data Bus Width:

  4

• JESD-30 Code:

  R-PQFP-G128

• JESD-609 Code:

  e3

• Length:

  20 mm

• Number of I/O Lines:

  60

• Number of Terminals:

  128

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK, FINE PITCH

• RAM (words):

  256

• Screening Level:

  TS 16949

• Seated Height-Max:

  3.4 mm

• Supply Voltage-Max:

  3.63 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  14 mm
