SCL3300-D01-1 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the SCL3300-D01-1?
  Murata recommends a 4-layer PCB with a solid ground plane and a separate power plane for the sensor. The sensor should be placed away from high-frequency components and noise sources. A detailed layout guide is available in the Murata application note.
• How do I calibrate the SCL3300-D01-1 for accurate acceleration measurements?
  Calibration involves applying known accelerations to the sensor and measuring the output. A calibration procedure is outlined in the datasheet, and Murata provides a calibration tool and software for this purpose.
• What is the maximum operating temperature range for the SCL3300-D01-1?
  The SCL3300-D01-1 is rated for operation from -40°C to 125°C, but the accuracy and sensitivity may degrade at extreme temperatures. Consult the datasheet for temperature-related specifications.
• Can I use the SCL3300-D01-1 in a high-vibration environment?
  Yes, the SCL3300-D01-1 is designed to operate in high-vibration environments. However, the vibration frequency and amplitude may affect the sensor's accuracy. Consult the datasheet for vibration-related specifications.

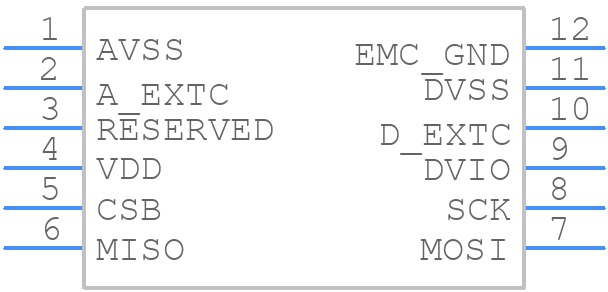

• How do I interface the SCL3300-D01-1 with a microcontroller?
  The SCL3300-D01-1 has a digital SPI interface. Connect the sensor's SCLK, MOSI, and MISO pins to the microcontroller's corresponding pins. Use a level shifter if necessary. Consult the datasheet for interface details.
