SCLF-1000+ - Mini-Circuits

Description: Signal Conditioning LOW PASS FLTR / SM / RoHS

Download SCLF-1000+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SCLF-1000+ - Mini-Circuits - PCB symbol
click to zoom

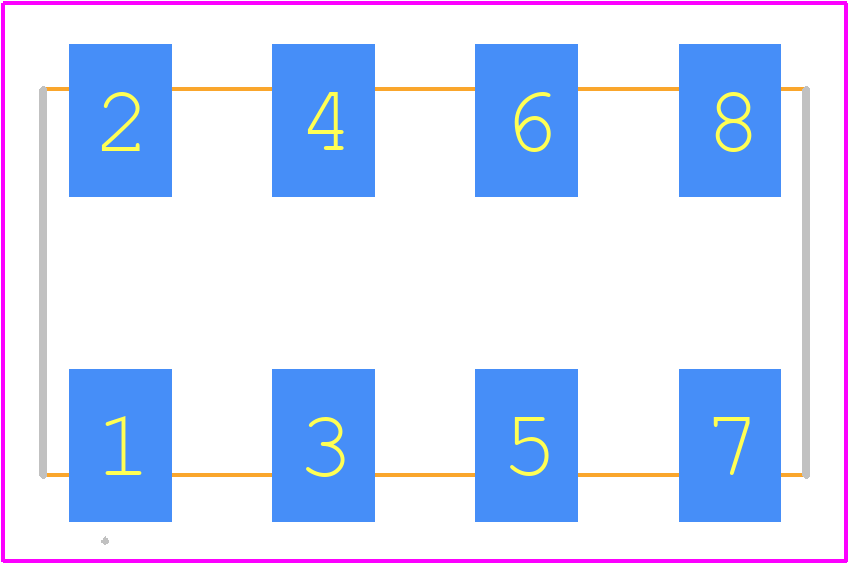

PCB Footprints
SCLF-1000+ - Mini-Circuits PCB footprint - Other - Other - SCLF-1000+-1
click to zoom
3D Models
SCLF-1000+ - Mini-Circuits - 3D model - Other - SCLF-1000+-1
click to zoom

SCLF-1000+ Details

  • Manufacturer Part Number:

    SCLF-1000+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Attenuation Frequency-Max:

    2100 MHz

  • Attenuation Frequency-Min:

    1620 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    1200 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    7.11 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR:

    1.7

  • Width:

    9.65 mm

SCLF-1000+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a via-stitched ground plane on the top layer. The device should be placed near the edge of the board to minimize signal reflections. A low-impedance path to ground is essential for the device's internal biasing network.
  • The SCLF-1000+ requires a 5V supply voltage and a bias current of 100mA. Ensure that the power supply is clean and well-regulated, and that the bias current is set correctly using the recommended bias resistor values. Improper biasing can lead to reduced performance and reliability issues.
  • The SCLF-1000+ can handle input powers up to +20dBm (100mW) without damage. However, for optimal performance and linearity, it is recommended to operate the device at input powers below +15dBm (30mW). Exceeding the maximum input power can lead to compression, distortion, and reduced reliability.
  • The SCLF-1000+ is a general-purpose amplifier, but it can be optimized for specific frequency ranges or applications by adjusting the input and output matching networks. Mini-Circuits provides application notes and design tools to help optimize the device for specific use cases.
  • The typical noise figure of the SCLF-1000+ is around 2.5dB. To minimize noise in your application, ensure that the device is properly biased, and that the input and output matching networks are optimized for minimum noise. Additionally, use high-quality components and a well-designed PCB layout to minimize noise coupling and radiation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCLF-1000+ Overview

Use the download button to access the SCLF-1000+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCLF-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
