SCLF-21.4+ Frequently Asked Questions (FAQs)

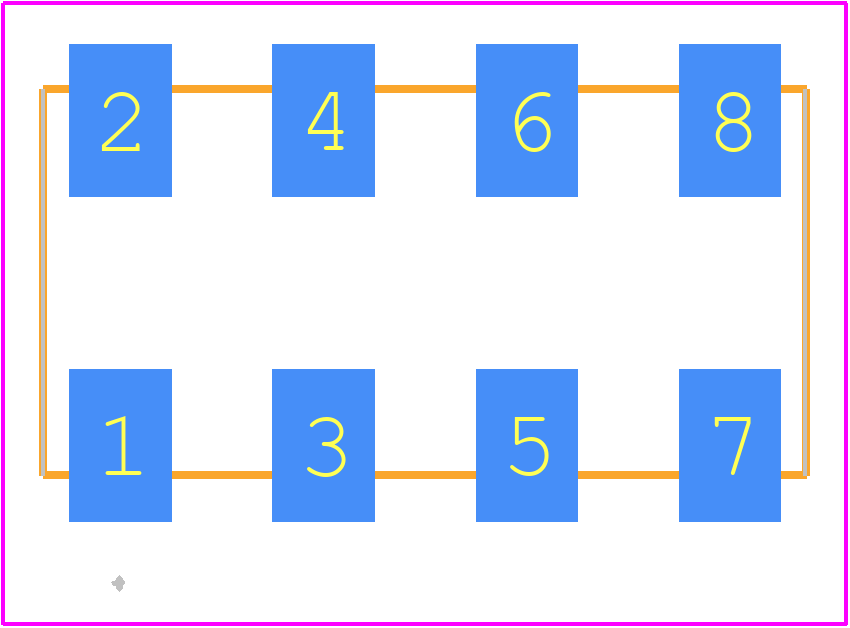

• What is the recommended PCB layout and footprint for the SCLF-21.4+?
  Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
• How do I impedance match the SCLF-21.4+ to my system?
  Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a simple impedance matching calculator on their website, and you can also use simulation tools like ADS or AWR to optimize the matching network.
• What is the maximum power handling of the SCLF-21.4+?
  The maximum power handling of the SCLF-21.4+ is not explicitly stated in the datasheet, but it's typically limited by the device's thermal characteristics. As a general rule, it's recommended to derate the power handling by 50% to ensure reliable operation. Consult with Mini-Circuits' application engineers for specific guidance.
• Can I use the SCLF-21.4+ in a push-pull configuration?
  Yes, the SCLF-21.4+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout considerations to ensure proper balancing and minimize even-order harmonics.
• What is the typical noise figure of the SCLF-21.4+?
  The typical noise figure of the SCLF-21.4+ is not explicitly stated in the datasheet, but it's typically around 1.5-2.5 dB. This can vary depending on the specific application, operating frequency, and bias conditions. Consult with Mini-Circuits' application engineers for more information.
