Part Image

SCLF-30+ - Mini-Circuits

Description: Signal Conditioning LOW PASS FLTR / SM / RoHS

Download SCLF-30+ Model

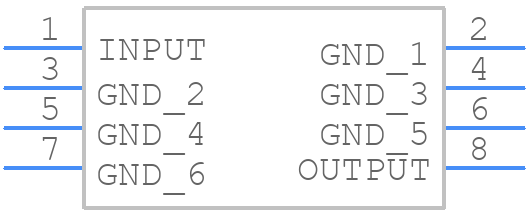

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SCLF-30+ - Mini-Circuits PCB footprint - Other - Other - SCLF-30+-1
click to zoom
3D Models
SCLF-30+ - Mini-Circuits  - 3D model - Other - SCLF-30+-1
click to zoom

SCLF-30+ Details

  • Manufacturer Part Number:

    SCLF-30+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.88

  • Attenuation Frequency-Max:

    61 MHz

  • Attenuation Frequency-Min:

    47 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    35 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    7.11 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR:

    1.7

  • Width:

    9.65 mm

SCLF-30+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The SCLF-30+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF design expert to determine the optimal matching network.
  • The SCLF-30+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • Yes, the SCLF-30+ is designed to meet the requirements of high-reliability and space-constrained applications. It's built with a ruggedized package and has a high-quality construction to ensure reliable operation in harsh environments.
  • To troubleshoot common issues, start by checking the PCB layout and footprint for any errors or deviations from the recommended design. Ensure that the input and output impedances are properly matched, and the power supply is stable and regulated. Consult the datasheet and application notes for more information on troubleshooting and debugging techniques.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCLF-30+ Overview

Use the download button to access the SCLF-30+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCLF-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
