SCLF-36+ - Mini-Circuits

Description: 40MHz (Cutoff) Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 1dB 1206 (3216 Metric), 4 PC Pad

Download SCLF-36+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

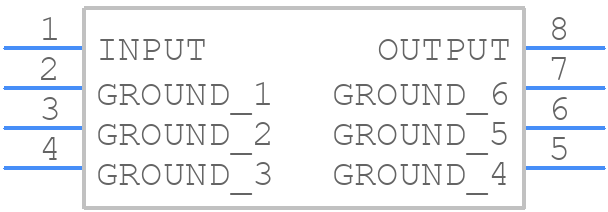

Symbol
SCLF-36+ - Mini-Circuits - PCB symbol
click to zoom

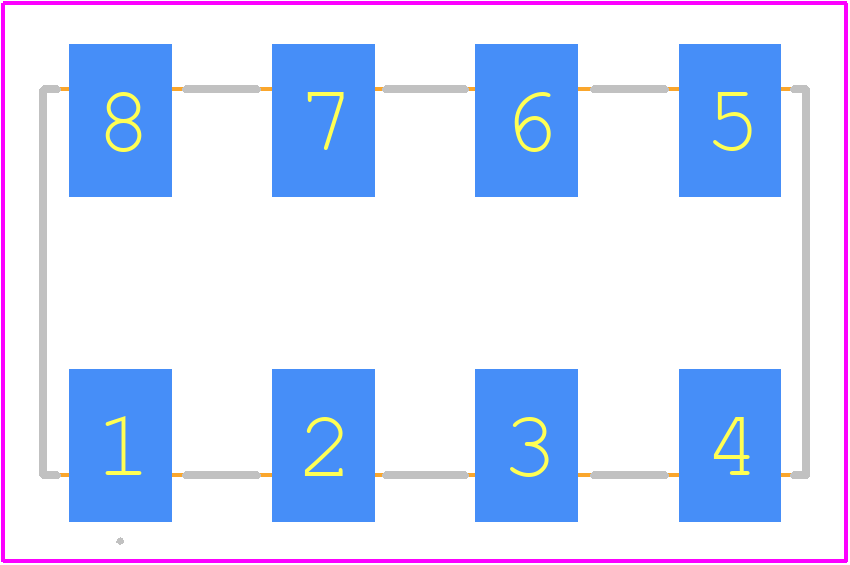

PCB Footprints
SCLF-36+ - Mini-Circuits PCB footprint - Other - Other - SCLF-36+-2
click to zoom
3D Models
SCLF-36+ - Mini-Circuits - 3D model - Other - SCLF-36+-2
click to zoom

SCLF-36+ Details

  • Manufacturer Part Number:

    SCLF-36+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.88

  • Attenuation Frequency-Max:

    57 MHz

  • Attenuation Frequency-Min:

    50 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    40 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    7.11 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR:

    1.3

  • Width:

    9.65 mm

SCLF-36+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The SCLF-36+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application notes.
  • The maximum power handling of the SCLF-36+ is 1W. Exceeding this power limit can cause damage to the device or affect its performance. Ensure that the input power is within the specified range to maintain reliability.
  • While the SCLF-36+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance. Consult with a qualified RF engineer or Mini-Circuits' technical support for guidance.
  • The SCLF-36+ operates from -40°C to +85°C. Operating outside this range may affect the device's performance, reliability, or lifespan. Ensure that the device is used within the specified temperature range for optimal results.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCLF-36+ Overview

Use the download button to access the SCLF-36+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCLF-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
