SCLF-4.7+ - Mini-Circuits

Description: Signal Conditioning LOW PASS FLTR / SM / RoHS

Download SCLF-4.7+ Model

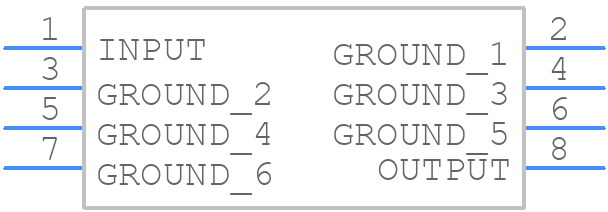

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

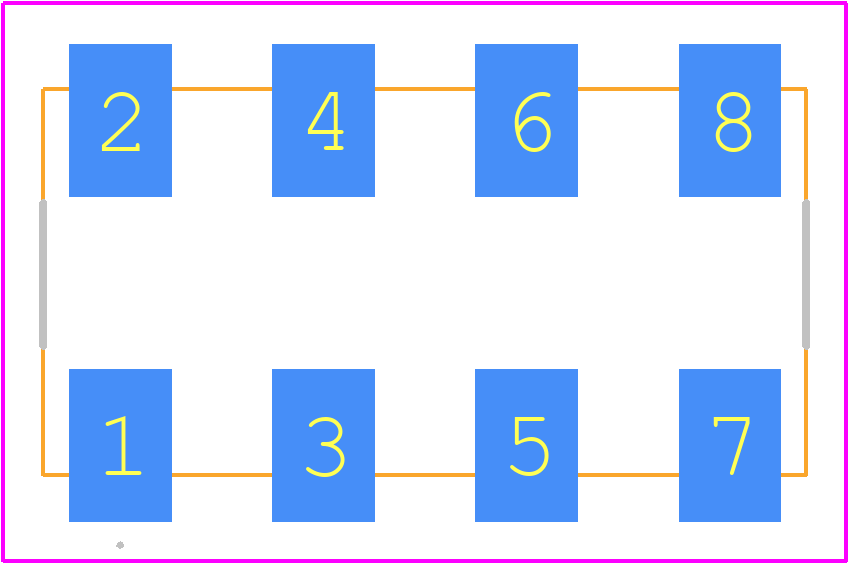

PCB Footprints
SCLF-4.7+ - Mini-Circuits PCB footprint - Other - Other - YY161_2022
click to zoom
3D Models
SCLF-4.7+ - Mini-Circuits  - 3D model - Other - YY161_2022
click to zoom

SCLF-4.7+ Details

  • Manufacturer Part Number:

    SCLF-4.7+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.79

  • Attenuation Frequency-Max:

    7.4 MHz

  • Attenuation@Freq-Max:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    5.6 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    7.11 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR:

    1.25

  • Width:

    9.65 mm
