SCLF-45+ - Mini-Circuits

Description: Signal Conditioning LOW PASS FLTR / SM / RoHS

Download SCLF-45+ Model

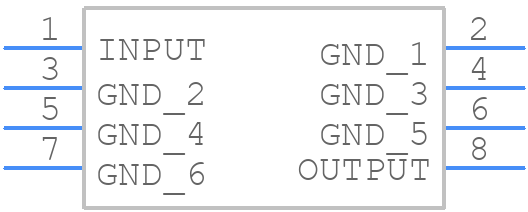

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

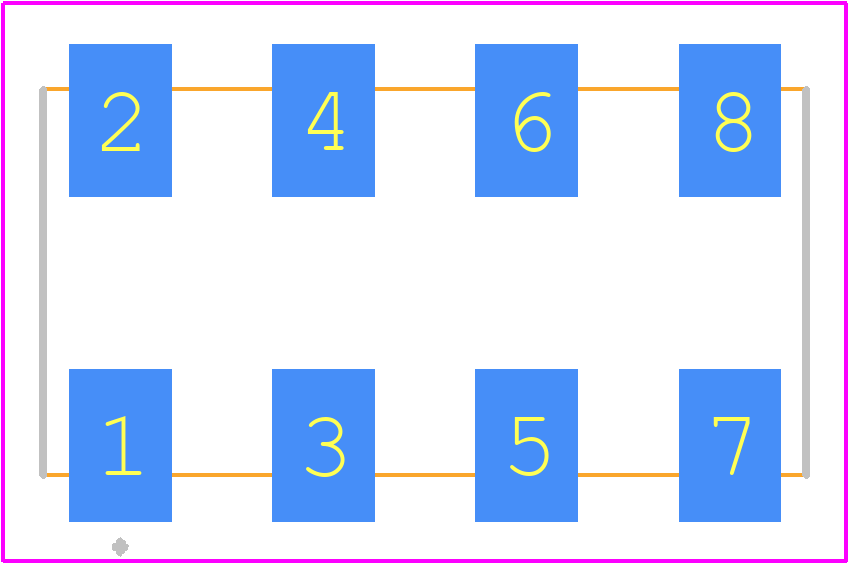

PCB Footprints
SCLF-45+ - Mini-Circuits PCB footprint - Other - Other - YY161
click to zoom
3D Models
SCLF-45+ - Mini-Circuits  - 3D model - Other - YY161
click to zoom

SCLF-45+ Details

  • Manufacturer Part Number:

    SCLF-45+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.88

  • Attenuation Frequency-Max:

    90 MHz

  • Attenuation Frequency-Min:

    70 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    55 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    7.11 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR:

    1.7

  • Width:

    9.65 mm

SCLF-45+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The SCLF-45+ can generate significant heat during operation. It's crucial to provide adequate heat sinking, such as a thermal pad or heat sink, to ensure reliable operation and prevent overheating. Additionally, ensure good airflow around the device.
  • While the datasheet specifies the maximum input power, it's essential to note that exceeding this limit can cause permanent damage to the device. As a general rule, it's recommended to derate the input power by 1-2 dB to ensure reliable operation.
  • The SCLF-45+ has a specific input and output impedance. To ensure optimal performance, it's essential to match these impedances using impedance-matching networks or components. Mini-Circuits provides guidance on impedance matching in their application notes.
  • The typical current consumption of the SCLF-45+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the typical current consumption is around 200-250 mA, depending on the operating frequency and input power.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCLF-45+ Overview

Use the download button to access the SCLF-45+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCLF-, or try a keyword search, such as General Purpose Passive Filters
