SCLF-65+ - Mini-Circuits

Description: Lumped LC Low Pass Filter, DC - 65 MHz, 50Ω

Download SCLF-65+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SCLF-65+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

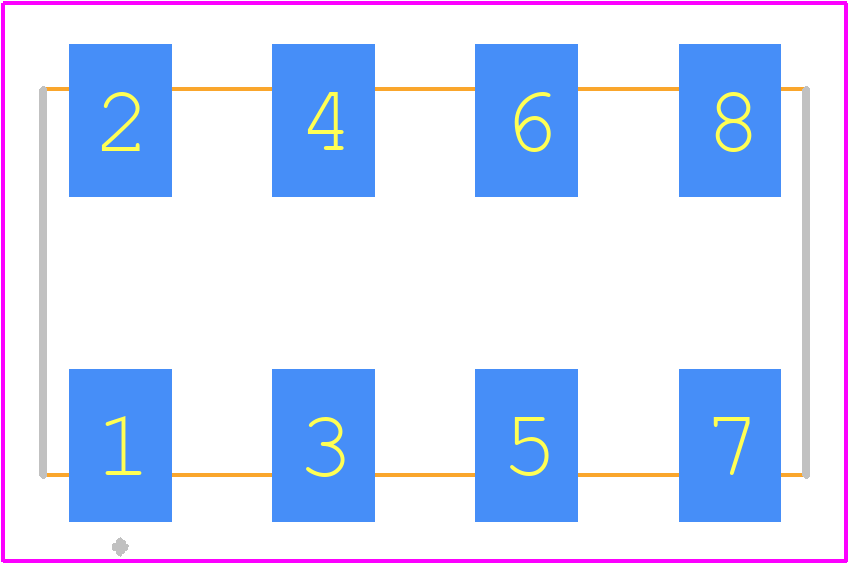

SCLF-65+ - Mini-Circuits PCB footprint - Other - Other - YY161
click to zoom
3D Models
SCLF-65+ - Mini-Circuits - 3D model - Other - YY161
click to zoom

SCLF-65+ Details

  • Manufacturer Part Number:

    SCLF-65+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.88

  • Attenuation Frequency-Max:

    96 MHz

  • Attenuation Frequency-Min:

    86 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    71 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    7.11 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR:

    1.3

  • Width:

    9.65 mm

SCLF-65+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • To achieve the specified return loss and insertion loss performance, ensure that the SCLF-65+ is properly terminated, and the input and output impedances are matched to 50 ohms. Additionally, use a high-quality PCB material and follow good RF design practices.
  • The maximum power handling capability of the SCLF-65+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of continuous power, but this may vary depending on the specific application and operating conditions.
  • While the SCLF-65+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, it's essential to impedance match the device to the system impedance to minimize reflections and ensure optimal performance.
  • The operating temperature range of the SCLF-65+ is -40°C to +85°C, but this may vary depending on the specific application and operating conditions. It's essential to consult with Mini-Circuits or refer to their application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCLF-65+ Overview

Use the download button to access the SCLF-65+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCLF-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
