SCLF-8+ - Mini-Circuits

Description: Signal Conditioning LOW PASS FLTR / SM / RoHS

Download SCLF-8+ Model

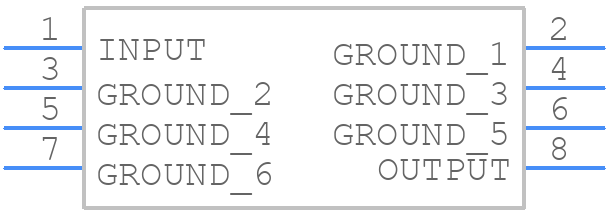

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

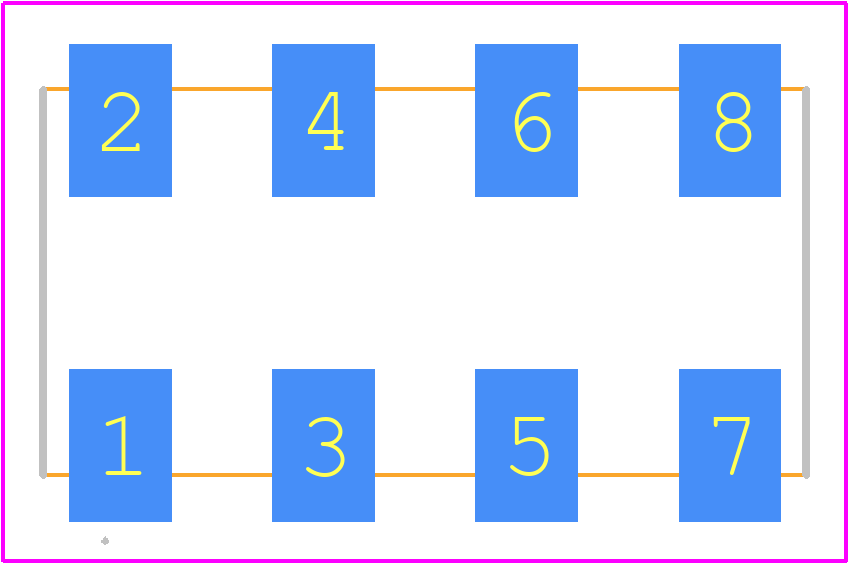

PCB Footprints
SCLF-8+ - Mini-Circuits PCB footprint - Other - Other - SCLF-8+-2
click to zoom
3D Models
SCLF-8+ - Mini-Circuits  - 3D model - Other - SCLF-8+-2
click to zoom

SCLF-8+ Details

  • Manufacturer Part Number:

    SCLF-8+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.79

  • Attenuation Frequency-Max:

    16.5 MHz

  • Attenuation Frequency-Min:

    12.5 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    9.2 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    7.11 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR:

    1.7

  • Width:

    9.65 mm

SCLF-8+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The SCLF-8+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator on their website to help with the design.
  • The maximum power handling of the SCLF-8+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application engineers, the device can handle up to 1W of continuous power and 2W of peak power. It's essential to derate the power handling based on the operating frequency and temperature.
  • Yes, the SCLF-8+ is designed to meet the requirements of high-reliability and space-constrained applications. It's built with a ruggedized package and has a high-reliability screening option available. However, it's essential to consult with Mini-Circuits' application engineers to ensure the device meets the specific requirements of your application.
  • Mini-Circuits provides a troubleshooting guide in their application note AN-60-015, which covers common issues and their solutions. Additionally, it's essential to ensure proper PCB layout, impedance matching, and handling of the device during assembly and testing.
