SCLF-95+ - Mini-Circuits

Description: Signal Conditioning LOW PASS FLTR / SM / RoHS

Download SCLF-95+ Model

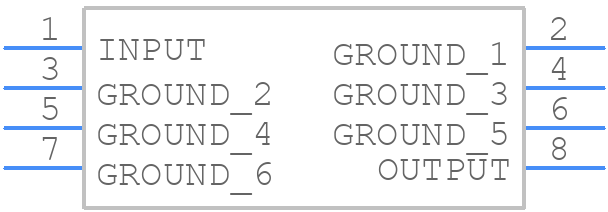

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

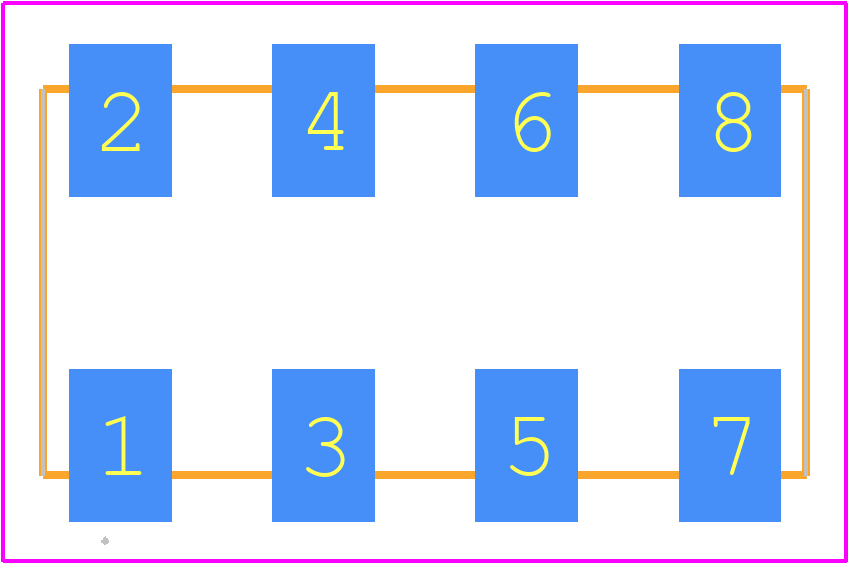

PCB Footprints
SCLF-95+ - Mini-Circuits PCB footprint - Other - Other - SCLF-95+-3
click to zoom
3D Models
SCLF-95+ - Mini-Circuits  - 3D model - Other - SCLF-95+-3
click to zoom

SCLF-95+ Details

  • Manufacturer Part Number:

    SCLF-95+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.88

  • Attenuation Frequency-Max:

    189 MHz

  • Attenuation Frequency-Min:

    146 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    108 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    7.11 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.7

  • Width:

    9.65 mm

SCLF-95+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The SCLF-95+ requires DC blocking capacitors to be added externally. The recommended value is 10nF to 100nF, and they should be placed as close to the filter as possible. The capacitor value and placement will affect the filter's performance, so it's essential to optimize them for the specific application.
  • The maximum power handling of the SCLF-95+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the filter can handle up to 1W of continuous power. It's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors.
  • The SCLF-95+ has a 50Ω input and output impedance. To impedance match the filter to your system, you may need to add external impedance matching networks. Mini-Circuits provides guidance on impedance matching in their application notes, and you can also use simulation tools to optimize the matching networks.
  • The operating temperature range of the SCLF-95+ is -40°C to +85°C. However, the filter's performance may degrade at extreme temperatures, and it's essential to consider the temperature range when designing your system.
