SCMR22L105SRBB0 - Kyocera AVX

Description: Series-Connected Super Capacitor Modules 9.0V Straight Leads Shrink Wrap/Radial

Download SCMR22L105SRBB0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SCMR22L105SRBB0 - Kyocera AVX - PCB symbol
click to zoom

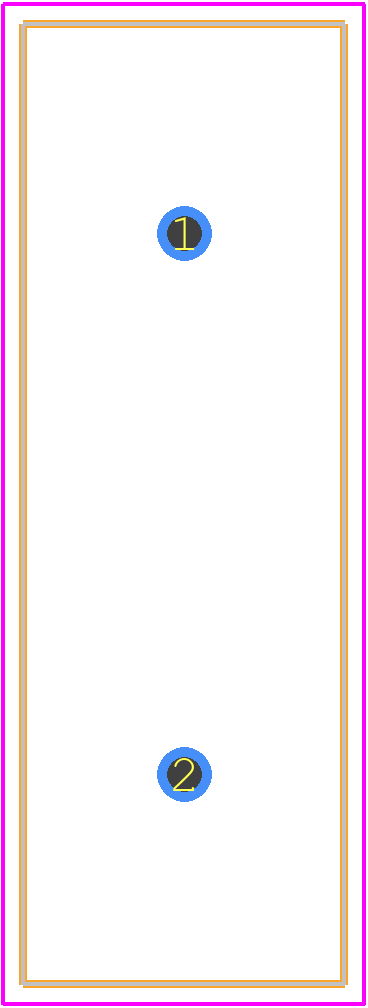

PCB Footprints
SCMR22L105SRBB0 - Kyocera AVX PCB footprint - Other - Other - SCMR22L105SRBB0-8
click to zoom
3D Models
SCMR22L105SRBB0 - Kyocera AVX - 3D model - Other - SCMR22L105SRBB0-8
click to zoom

SCMR22L105SRBB0 Details

  • Manufacturer Part Number:

    SCMR22L105SRBB0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.95

  • Additional Feature:

    ESR IS MEASURED AT 1 KHZ

  • Capacitance:

    1000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Dielectric Material:

    ACTIVATED CARBON

  • ESR:

    350 mΩ

  • Height:

    22 mm

  • Leakage Current:

    0.018 mA

  • Length:

    24 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    9 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    13.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    8 mm

SCMR22L105SRBB0 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SCMR22L105SRBB0 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
  • The SCMR22L105SRBB0 is a moisture-sensitive device and requires proper handling and storage to prevent damage. It is recommended to store the components in a dry, cool place, and to follow the recommended baking and drying procedures before reflow soldering.
  • The maximum reflow temperature for the SCMR22L105SRBB0 is 260°C, with a recommended reflow profile of 3-5 minutes above 220°C. It is essential to follow the recommended reflow profile to prevent damage to the component.
  • The SCMR22L105SRBB0 is designed to withstand moderate vibration levels, but it is not recommended for use in high-vibration environments. If your application requires high vibration resistance, it is recommended to consult with Kyocera AVX Components' application engineers to determine the suitability of the component.
  • The ESR of the SCMR22L105SRBB0 can be determined by measuring the impedance of the component at high frequency (e.g., 100 kHz) using an impedance analyzer or a network analyzer. The ESR can also be calculated using the component's capacitance and resonant frequency values.
