SCN-2-11+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download SCN-2-11+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

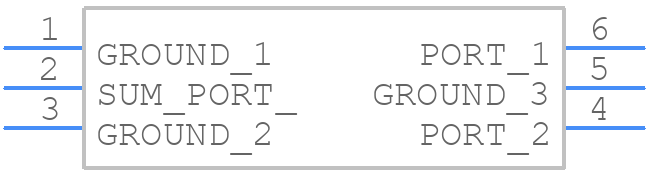

SCN-2-11+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCN-2-11+ - Mini-Circuits PCB footprint - Other - Other - FV1206-1 _2022
click to zoom
3D Models
SCN-2-11+ - Mini-Circuits - 3D model - Other - FV1206-1 _2022
click to zoom

SCN-2-11+ Details

  • Manufacturer Part Number:

    SCN-2-11+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FV1206-1, 6 PIN

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    43.01 dBm

  • Insertion Loss-Max:

    0.8 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1175 MHz

  • Operating Frequency-Min:

    800 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

SCN-2-11+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the SCN-2-11+ is -40°C to +85°C.
  • Yes, the SCN-2-11+ is designed to operate in humid environments, but it's recommended to follow proper sealing and conformal coating procedures to ensure reliability.
  • A good grounding scheme is essential for the SCN-2-11+. It's recommended to use a solid ground plane, and to connect the device's ground pins to the ground plane using short, wide traces. Avoid using vias or narrow traces near the device.
  • To optimize the SCN-2-11+ for low noise figure and high gain, use a high-quality, low-noise power supply, and ensure proper impedance matching at the input and output. Also, use a good quality PCB material and layout to minimize parasitic inductance and capacitance.
  • Yes, the SCN-2-11+ can be used in switching applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the device's bandwidth. Also, consider using a suitable switching controller or driver to minimize switching losses.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCN-2-11+ Overview

Use the download button to access the SCN-2-11+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCN-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits
