SCN-2-15+ - Mini-Circuits

Description: Signal Conditioning 2 Ways LTCC Power Splitter, 1100 - 1450 MHz, 50 ohms

Download SCN-2-15+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

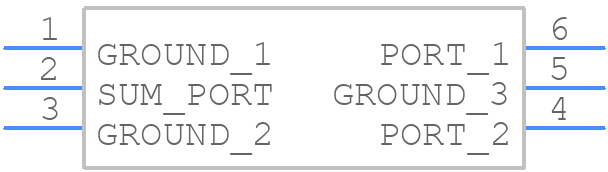

SCN-2-15+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCN-2-15+ - Mini-Circuits PCB footprint - Other - Other - SCN-2-15+-2
click to zoom
3D Models
SCN-2-15+ - Mini-Circuits - 3D model - Other - SCN-2-15+-2
click to zoom

SCN-2-15+ Details

  • Manufacturer Part Number:

    SCN-2-15+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.29

  • Additional Feature:

    ISOLATION-MIN (DB):17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    43.01 dBm

  • Insertion Loss-Max:

    0.8 dB

  • Isolation-Min:

    17 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    1450 MHz

  • Operating Frequency-Min:

    1100 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.06,40

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.31

SCN-2-15+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the SCN-2-15+ is 1 watt. Exceeding this power limit can cause damage to the device.
  • The SCN-2-15+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the impedance of your system.
  • The operating temperature range of the SCN-2-15+ is -40°C to +85°C. Operating outside this range can affect the device's performance and reliability.
  • The SCN-2-15+ is a commercial-grade device and may not meet the requirements for high-reliability or space applications. For such applications, consider using a radiation-hardened or high-reliability version of the device.
  • To troubleshoot issues with the SCN-2-15+, check for proper power supply, impedance matching, and signal integrity. Use a spectrum analyzer or oscilloscope to verify the signal quality and frequency response.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCN-2-15+ Overview

Use the download button to access the SCN-2-15+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCN-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
