SCN-2-27+ - Mini-Circuits

Description: RF Power Divider 2.225 GHz ~ 2.7 GHz Isolation (Min) 17dB, 19dB Return Loss, 6° Imbalance (Max) 6-SMD, No Lead

Download SCN-2-27+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

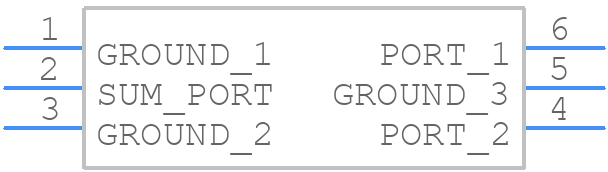

Symbol
SCN-2-27+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCN-2-27+ - Mini-Circuits PCB footprint - Other - Other - SCN-2-27+-2
click to zoom
3D Models
SCN-2-27+ - Mini-Circuits - 3D model - Other - SCN-2-27+-2
click to zoom

SCN-2-27+ Details

  • Manufacturer Part Number:

    SCN-2-27+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FV1206-1, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.15

  • Additional Feature:

    ISOLATION-MIN (DB):17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    43.01 dBm

  • Insertion Loss-Max:

    1.1 dB

  • Isolation-Min:

    17 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    2225 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.06,40

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.33

SCN-2-27+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the SCN-2-27+ is 20 watts, but it's recommended to derate the power handling based on the operating frequency and environmental conditions.
  • Yes, the SCN-2-27+ can be used as either a 2-way splitter or a 2-way combiner, depending on the application requirements.
  • The operating temperature range of the SCN-2-27+ is -40°C to +85°C, but the device can be stored at temperatures between -55°C and +125°C.
  • The SCN-2-27+ is designed for indoor use, but it can be used outdoors if properly sealed and protected from environmental factors such as moisture and extreme temperatures.
  • The SCN-2-27+ is designed for 50 ohm systems, but it can be used with non-50 ohm systems with some performance degradation. However, it's recommended to consult with Mini-Circuits or a qualified RF engineer for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCN-2-27+ Overview

Use the download button to access the SCN-2-27+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCN-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
