SCN-3-13+ - Mini-Circuits

Description: Signal Conditioning 3 Ways LTCC Power Splitter, 750 - 1325 MHz, 50 ohms

Download SCN-3-13+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

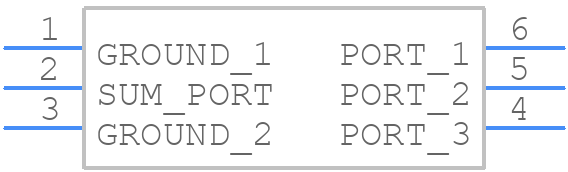

SCN-3-13+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCN-3-13+ - Mini-Circuits PCB footprint - Other - Other - SCN-3-13+-3
click to zoom
3D Models
SCN-3-13+ - Mini-Circuits - 3D model - Other - SCN-3-13+-3
click to zoom

SCN-3-13+ Details

  • Manufacturer Part Number:

    SCN-3-13+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FV1206-1, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.95

  • Additional Feature:

    ISOLATION-MIN (DB):10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    41.76 dBm

  • Insertion Loss-Max:

    1.5 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1325 MHz

  • Operating Frequency-Min:

    750 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

SCN-3-13+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the SCN-3-13+ is 1 watt. Exceeding this power rating may cause damage to the device.
  • The SCN-3-13+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the impedance of your system.
  • The operating temperature range of the SCN-3-13+ is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.
  • Yes, the SCN-3-13+ is suitable for high-reliability applications. It is built with high-quality components and undergoes rigorous testing to ensure its performance and reliability.
  • Use a soldering iron with a temperature of 250°C to 270°C. Apply a small amount of solder to the pads and reflow the solder using a soldering iron or a hot air gun.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCN-3-13+ Overview

Use the download button to access the SCN-3-13+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCN-3, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.

Parts related to SCN-3-13+
